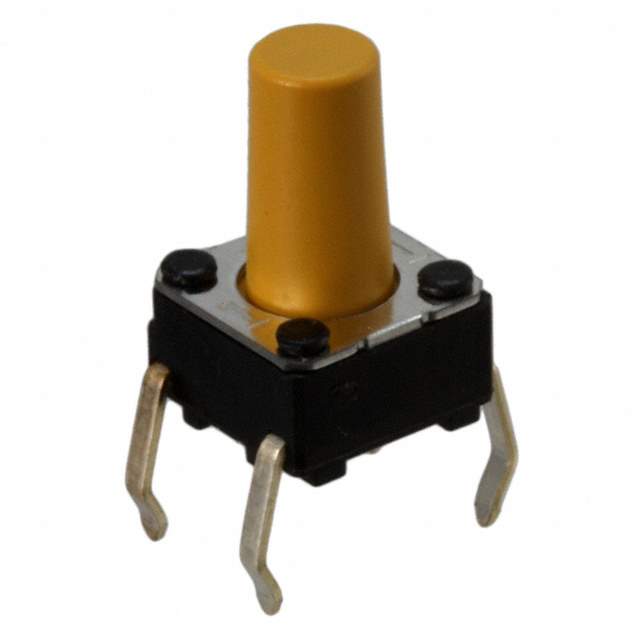

B3F-1072 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Tactile Switches
Mfr Omron Electronics Inc-EMC Div
Series B3F
Package Bulk
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Standard
Mounting Type Through Hole
Actuator Height off PCB, Vertical 9.50mm
Actuator Orientation Top Actuated
Termination Style PC Pin
Outline 6.00mm x 6.00mm
Illumination Non-Illuminated
Operating Force 150gf
Temperature Range - Operating -25°C ~ 70°C
Switch Travel 0.25mm
Mechanical Life 300,000 Cycles
Base Product Number B3F
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Other Names A6H 0055C,SW1179,B3F1072N,B3F-1072-ND,B3F1072
Standard Package 1,000
Win Source Part Number 1047694-B3F-1072
Ultra Librarian 3D Model Ultra Librarian B3F-1072 CAD Model

Description

The Omron B3F-1072 tactile switch is a single-pole single-throw (SPST) switch with a momentary Off-Mom function.

  • Switch Travel: 0.25mm
  • Operating Force: 150gf
  • Actuation Orientation: Top
  • Mounting: Through-Hole
  • Contact Rating: 0.05A @ 24VDC
  • Mechanical Life: 300,000 cycles
  • Operating Temperature: -25°C to 70°C
  • Illumination: Non-Illuminated
  • Outline: 6.00mm x 6.00mm
  • Packaging: Bulk
  • Standard Package: 1,000
