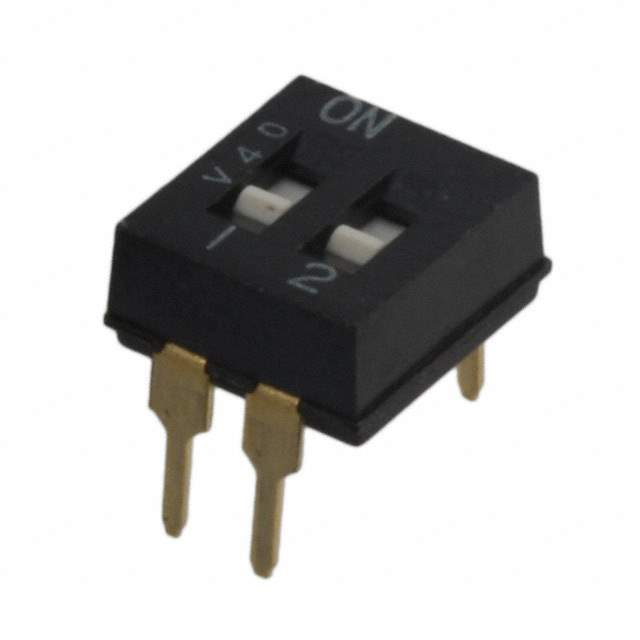

A6TN-2101 Real Image
Same model may have multiple batches, images only for reference.

A6TN-2101

Part No A6TN-2101
Manufacturer Omron
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V / Dip Switch SPST 2 Position Through Hole Slide (Standard) Actuator 25mA 24VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr Omron Electronics Inc-EMC Div
Series A6TN
Package Tube
Circuit SPST
Number of Positions 2
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Height Above Board 0.189" (4.80mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Temperature Range - Operating -30°C ~ 85°C
Length 0.276" (7.00mm)
Electrical Life 1,000 Cycles
Base Product Number A6T
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Other Names A6TN2101,SW1194
Standard Package 60
Win Source Part Number 1177801-A6TN-2101
Ultra Librarian 3D Model Ultra Librarian A6TN-2101 CAD Model

Description

The Omron Electronics Inc-EMC Div A6TN-2101 is a SPST circuit DIP switch with a slide actuator type.

  • Circuit: SPST
  • Actuator Type: Slide
  • Positions: 2
  • Pitch: 0.100" (2.54mm), Full
  • Termination Style: PC Pin
  • Washable: Yes
  • Height Above Board: 0.189" (4.80mm)
  • Length: 0.276" (7.00mm)
  • Voltage Rating: 24VDC
  • Electrical Life: 1,000 Cycles
  • Mechanical Life: Not Specified
  • Flush/Recessed: Flush and Recessed
  • Mounting Type: Through-Hole
  • Manufacturer: Omron Electronics Inc-EMC Div
  • Win Source Part Number: 1177801-A6TN-2101
