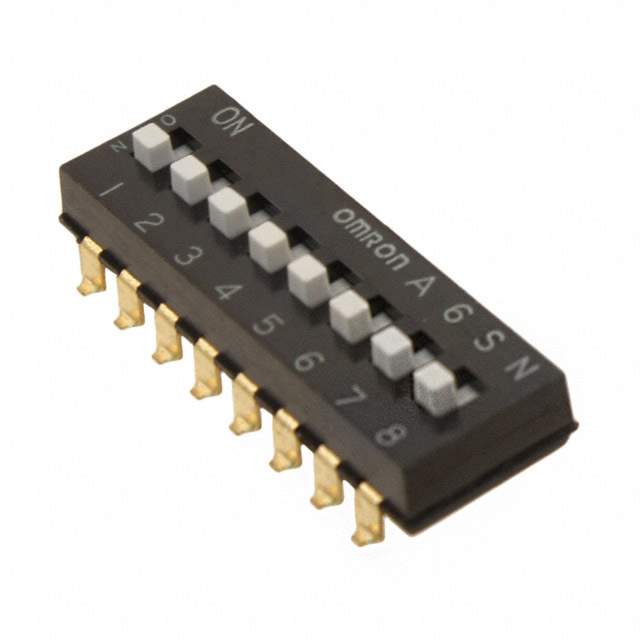

A6SN-8104-P Real Image
Same model may have multiple batches, images only for reference.

A6SN-8104-P

Part No A6SN-8104-P
Manufacturer Omron
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V  /  Dip Switch SPST 8 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr Omron Electronics Inc-EMC Div
Series A6SN
Package Tape & Reel
Circuit SPST
Number of Positions 8
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Height Above Board 0.214" (5.45mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Temperature Range - Operating -30°C ~ 85°C
Length 0.876" (22.26mm)
Electrical Life 1,000 Cycles
Base Product Number A6SN
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Other Names Z11567CT,Z11567DKR,Z11567TR,A6SN8104P,2266-A6SN-8104-P,A6SN-8104-P-ND
Standard Package 700
Win Source Part Number 1172383-A6SN-8104-P
Ultra Librarian 3D Model Ultra Librarian A6SN-8104-P CAD Model

Description

The Omron A6SN-8104-P is an 8-position DIP switch with a pitch of 0.100 inches and a full gull-wing termination style.

  • Series: A6SN
  • Number of Positions: 8
  • Pitch: 0.100 inches
  • Termination Style: Full Gull-Wing
  • Voltage Rating: 24VDC
  • Mounting Type: Surface Mount Device (SMD)
  • Actuator Type: Raised
  • Washable: Yes
  • Temperature Range: -30°C to 85°C
