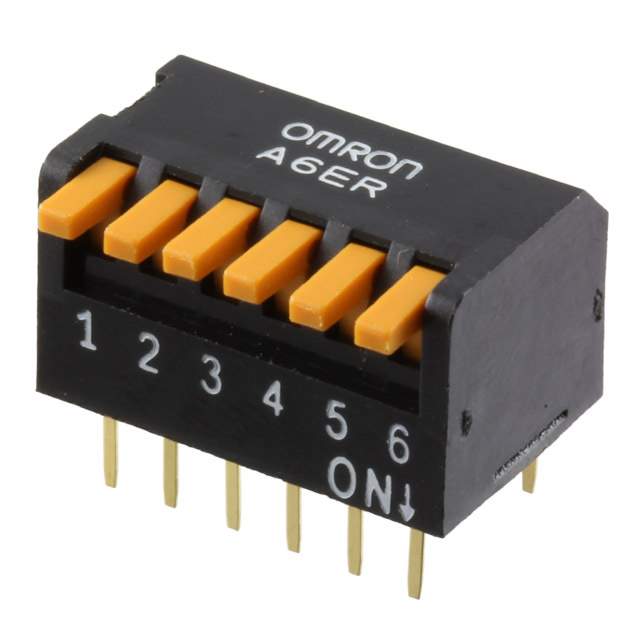

A6ER-6104 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Manufacturer Omron Electronics Inc-EMC Div
Packaging Tube
Part Status Last Time Buy
Circuit SPST
Number of Positions 6
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Piano
Actuator Level Raised
Contact Finish Gold
Height Above Board 0.402" (10.20mm)
Mounting Style Through Hole, Right Angle
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Features Sealed - Flux Protection
Temperature Range - Operating -20°C ~ 70°C
Length 0.661" (16.80mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Manufacturer Pack Quantity 27
MSL Level 1 (Unlimited)
Win Source Part Number 1134777-A6ER-6104
Manufacturer Homepage www.omron.com/index3.html
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian A6ER-6104 CAD Model

Description

The Omron Electronics Inc-EMC Div electronic component is a high-quality switch with a sealed-flux protection feature.

  • Supply and Demand Status: Limited
  • Popularity: Medium
  • Circuit: SPST
  • Voltage Rating: 24VDC
  • Feature: Sealed-Flux Protection
