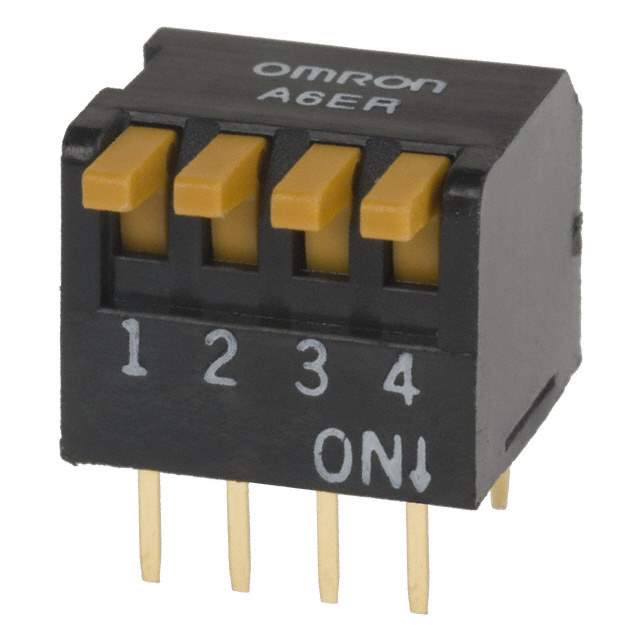

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr Omron Electronics Inc-EMC Div
Series A6ER
Package Tray
Product Status Obsolete
Circuit SPST
Number of Positions 3
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Piano
Actuator Level Flush, Recessed
Contact Finish Gold
Height Above Board 0.402" (10.20mm)
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Features Sealed - Flux Protection
Temperature Range - Operating -20°C ~ 70°C
Length 0.361" (9.17mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.9065
Other Names A6ER3101
Standard Package 50
Win Source Part Number 1000023-A6ER-3101
Ultra Librarian 3D Model Ultra Librarian A6ER-3101 CAD Model

Description

The A6ER-3101 is a DIP switch manufactured by Omron Electronics Inc-EMC Div.

  • Number of Positions: 3
  • Pitch: 0.100" (2.54mm), full
  • Protection: sealed-flux
  • Contact Finish: gold
  • Actuator Level: flush and recessed
  • Temperature Range: -20°C to 70°C
  • Electrical Life: 1,000 cycles
  • Mechanical Life: 1,000 cycles
  • Supply and Demand Status: balance
