Same model may have multiple batches, images only for reference.

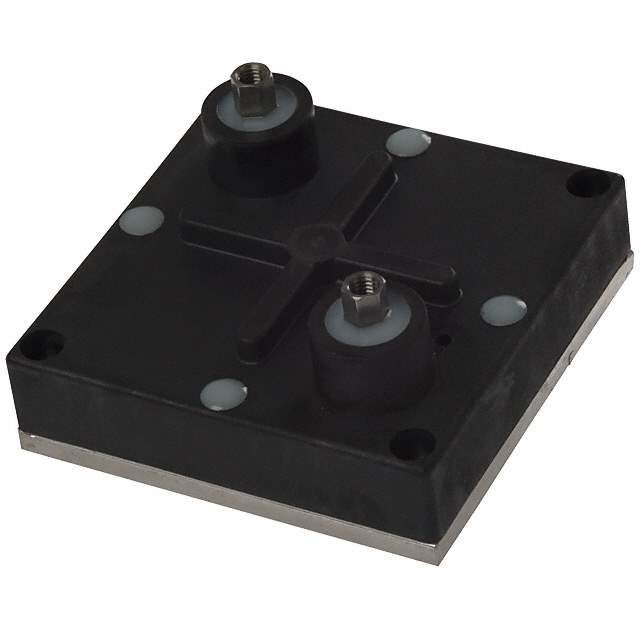

TA1K0PH2R50KE Real Image
Same model may have multiple batches, images only for reference.

TA1K0PH2R50KE

Part No TA1K0PH2R50KE
Manufacturer Ohmite
Catalog Chassis Mount Resistors
Description 1000 Watt Heat Sinkable Planar
Datasheet
TA1K0PH2R50KE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Ohmite
Series TAP1000
Packaging Bulk
Resistance (Ohms) 2.5
Tolerance ±10%
Power (Watts) 1000W
Composition Thick Film
Temperature Coefficient ±250ppm/°C
Operating Temperature Range -55°C ~ 85°C
Features Moisture Resistant
Coating, Housing Type Epoxy Coated
Mounting Feature Flanges
Size 3.000" L x 3.000" W (76.20mm x 76.20mm)
Height - Seated (Maximum) 1.548" (39.31mm)
Lead Style #10-32 Threaded
Package Box
Win Source Part Number 1263760-TA1K0PH2R50KE
Manufacturer Homepage www.ohmite.com
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1
Family Name TAP1000
Introduction Date October 15, 2010
ECCN EAR99
Country of Origin Mexico
Halogen Free Unknown
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian TA1K0PH2R50KE CAD Model

Description

The 1263760-TA1K0PH2R50KE is a TAP1000 series resistor from Ohmite.

  • Type: It is a thick film composition resistor that comes in a box package.
  • Resistance: It has a resistance of 2.5 ohms with a tolerance of ±10% and a temperature coefficient of ±250ppm/°C.
  • Power Rating: It has a power rating of 1000W and a lead style of #10-32 threaded.
  • Mounting: The mounting feature is flanges, and it has a size of 3.000" L x 3.000" W (76.20mm x 76.20mm).
  • Operating Temperature: The resistor has an operating temperature range of -55°C ~ 85°C and is moisture-resistant.
  • HTSUS: Its HTSUS is 8542.39.0001.
