Same model may have multiple batches, images only for reference.

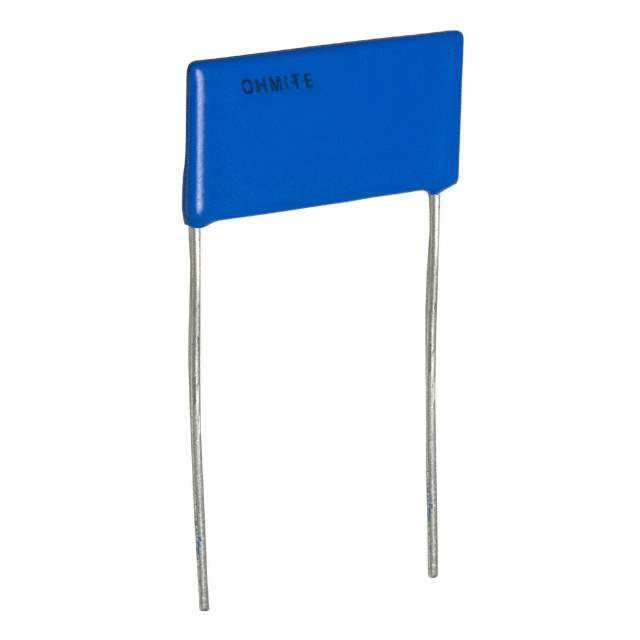

SM204031004JE Real Image
Same model may have multiple batches, images only for reference.

SM204031004JE

Part No SM204031004JE
Manufacturer Ohmite
Catalog Through Hole Resistors
Description RES 1M OHM 5% 2W RADIAL / 1 MOhms ±5% 2W Through Hole Resistor Radial High Voltage, Non-Inductive Thick Film
Datasheet
SM204031004JE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr Ohmite
Series Slim-Mox
Package Bulk
Resistance 1 mOhms
Tolerance ±5%
Power (Watts) 2W
Composition Thick Film
Features High Voltage, Non-Inductive
Temperature Coefficient 50ppm/°C
Temperature Range - Operating -55°C ~ 110°C
Package / Case Radial
Supplier Device Package Radial
Dimension 1.080" L x 0.100" W (27.43mm x 2.54mm)
Height - Seated (Max) 0.590" (14.99mm)
Number of Terminations 2
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.21.0090
Other Names SM204031004JE-ND,SM204JE-1M
Standard Package 100
Win Source Part Number 1190922-SM204031004JE
Ultra Librarian 3D Model Ultra Librarian SM204031004JE CAD Model

Description

The Ohmite 1190922-SM204031004JE is a high voltage, non-inductive Slim-Mox resistor.

  • Manufacturer: Ohmite
  • Composition: Thick Film
  • Resistance: 1 mOhms
  • Tolerance: ±5%
  • Temperature Coefficient: 50ppm/°C
  • Package/Case: Radial
  • Device Package: Radial
  • Power Rating: 2W
  • Terminations: 2
  • Operating Temperature: -55°C to 110°C
  • Dimension: 1.080" L x 0.100" W (27.43mm x 2.54mm)
  • HTSUS: 8533.21.0090
