Same model may have multiple batches, images only for reference.

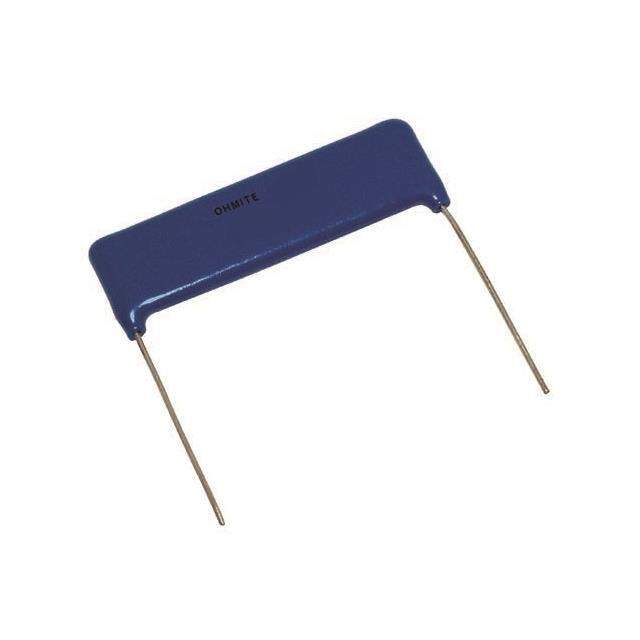

SM103032005FE Real Image
Same model may have multiple batches, images only for reference.

SM103032005FE

Part No SM103032005FE
Manufacturer Ohmite
Catalog Through Hole Resistors
Description Resistor; Thick Film; Res 20 Megohms; Pwr-Rtg 1.25 W; Tol 1%; Radial; Planar
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package Radial
Composition Thick Film
Height 8.64 mm
Lead Diameter 813 µm
Lead Pitch 15.24 mm
Length 21.08 mm
Maximum Operating Temperature 110 °C
Min Operating Temperature -55 °C
Packaging Bulk
Power Rating 1.25 W
Resistance 20 mΩ
RoHS Compliant
Temperature Coefficient 25 ppm/°C
Termination Radial
Tolerance 1 %
Voltage Rating 7.5 kV
Voltage Rating (DC) 7.5 kV
Width 2.54 mm
Win Source Part Number 1021924-SM103032005FE
Categories Through Hole Resistors
Manufacturer Ohmite
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian SM103032005FE CAD Model

Description

The SM103032005FE is a thick film resistor from Ohmite.

  • Type: through hole resistor
  • Termination Style: radial
  • Voltage Rating: 7.5 kV
  • Power Rating: 1.25 W
  • Tolerance: 1%
  • Temperature Coefficient: 25 ppm/°C
  • Resistance: 20 mΩ
  • Height: 8.64 mm
  • Supply and Demand Status: shortage
