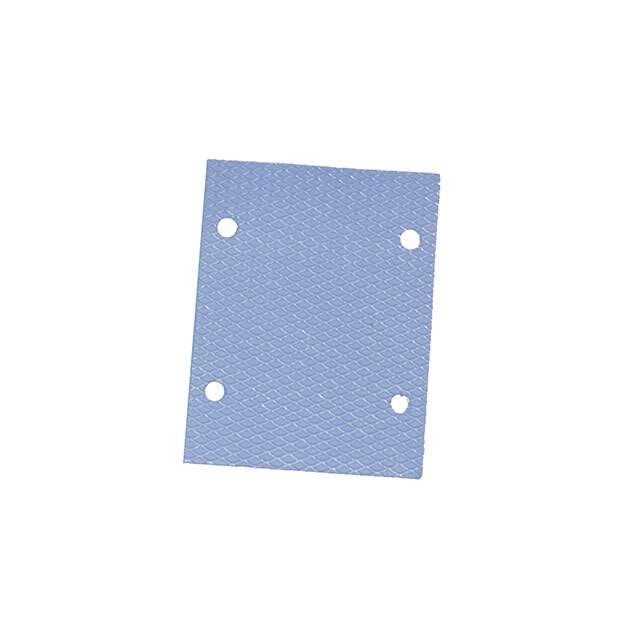

HS100-TP2 Real Image
Same model may have multiple batches, images only for reference.

HS100-TP2

Part No HS100-TP2
Manufacturer Ohmite
Catalog Thermal - Pads, Sheets
Description HS100 RESISTOR THERMAL PAD  /  Thermal Pad Blue 65.20mm x 47.50mm Rectangular Tacky - Both Sides
Datasheet
HS100-TP2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>Thermal - Pads, Sheets
Mfr Ohmite
Series HS
Package Bulk
Usage IGBT - Heat Transfer Low Thermal Resistance
Type Interface Pad, Sheet
Shape Rectangular
Outline 65.20mm x 47.50mm
Thickness 0.0200" (0.508mm)
Material Silicone, Ceramic Filled
Adhesive Tacky - Both Sides
Color Blue
Thermal Conductivity 3.0W/m-K
MSL Level Not Applicable
ECCN EAR99
HTSUS 3920.99.2000
Other Names 273-HS100-TP2
Standard Package 25
Win Source Part Number 1063511-HS100-TP2
Ultra Librarian 3D Model Ultra Librarian HS100-TP2 CAD Model

Description

The HS100-TP2 electronic component is a high-quality product that is manufactured by Ohmite.

  • Win Source Part Number: 1063511-HS100-TP2
  • Category: Fans, Thermal Management-Thermal-Pads, Sheets
  • Product: Interface pad, sheet
  • Color: Blue
  • Thickness: 0.0200 inches (0.508mm)
  • Outline: 65.20mm x 47.50mm
  • Thermal Conductivity: 3.0W/m-K
  • Material: Silicone, ceramic filled
  • Feature: Tacky on both sides and has no backing carrier
