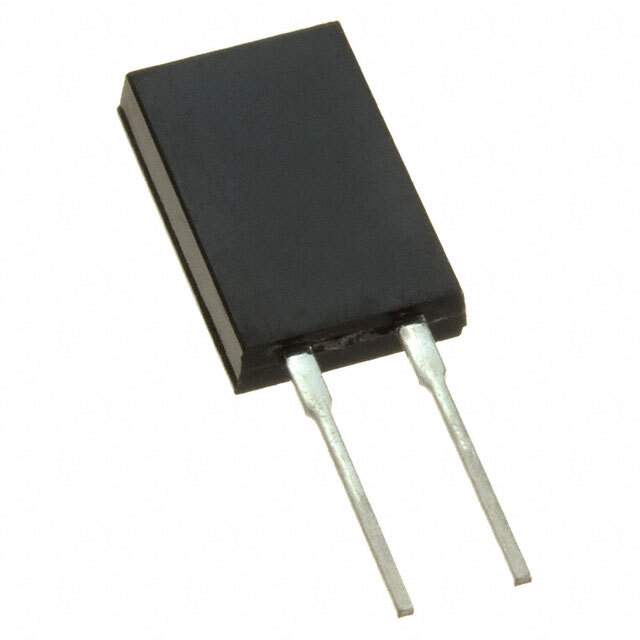

AP101 R05 J Real Image1 AP101 R05 J Real Image2
Same model may have multiple batches, images only for reference.
AP101 R05 J Real Image1 AP101 R05 J Real Image2
AP101 R05 J Real Image1 AP101 R05 J Real Image2
Same model may have multiple batches, images only for reference.

AP101 R05 J

Part No AP101 R05 J
Manufacturer Ohmite
Catalog Through Hole Resistors
Description RES 0.05 OHM 5% 100W TO247 / 50 mOhms ±5% 100W Through Hole Resistor TO-247-2 Moisture Resistant, Non-Inductive Thick Film
Datasheet
AP101 R05 J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr Ohmite
Series ARCOL, AP101
Package Tray
Resistance 50 mOhms
Tolerance ±5%
Power (Watts) 100W
Composition Thick Film
Features Moisture Resistant, Non-Inductive
Temperature Coefficient -
Temperature Range - Operating -65°C ~ 175°C
Package / Case TO-247-2
Supplier Device Package TO-247
Size / Dimension 0.620" L x 0.195" W (15.75mm x 4.95mm)
Height - Seated (Max) 0.825" (20.96mm)
Number of Terminations 2
Failure Rate -
Moisture Sensitivity Level (MSL) Not Applicable
ECCN EAR99
HTSUS 8533.29.0000
Standard Package 25 pcs
Win Source Part Number 1381413-AP101 R05 J
Ultra Librarian 3D Model Ultra Librarian AP101 R05 J CAD Model

Description

The 1381413-AP101 R05 J is a through-hole resistor from the ARCOL AP101 series.

  • Features: Moisture Resistant, Non-Inductive
  • Size / Dimension: 0.620" L x 0.195" W (15.75mm x 4.95mm)
  • Height - Seated (Max): 0.825" (20.96mm)
  • Tolerance: ±5%
  • Power (Watts): 100W
  • Resistance: 50 mOhms
  • Composition: Thick Film
  • Number of Terminations: 2
  • Package / Case: TO-247-2
  • Operating Temperature: -65°C to 175°C
