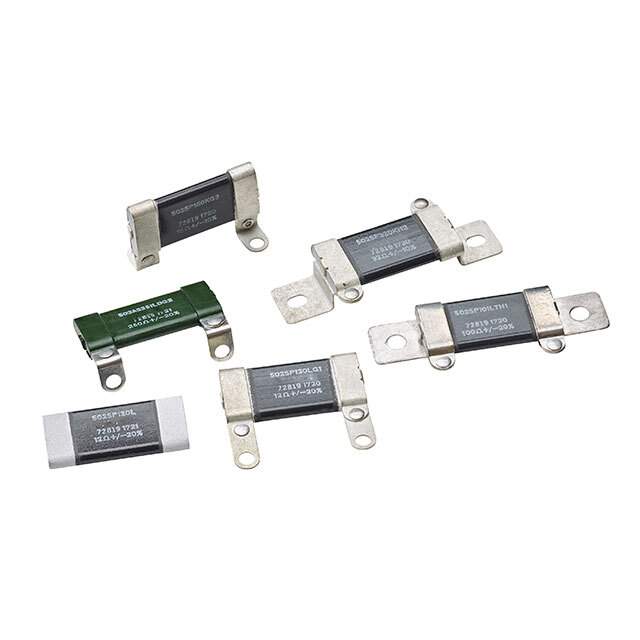

508AS500KDG2 Real Image
Same model may have multiple batches, images only for reference.

508AS500KDG2

Part No 508AS500KDG2
Manufacturer Ohmite
Catalog Chassis Mount Resistors
Description 48W 8900J 50 OHM 10% SLAB / 50 Ohms ±10% 48W Ceramic Chassis Mount Resistor
Datasheet
508AS500KDG2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chassis Mount Resistors
Mfr Ohmite
Series 500
Package Box
Resistance 50 Ohms
Tolerance ±10%
Power (Watts) 48W
Composition Ceramic
Temperature Coefficient 0/ -800ppm/°C
Temperature Range - Operating -55°C ~ 230°C
Features Moisture Resistant, Non-Inductive, Pulse Withstanding
Mounting Feature Brackets (not included)
Dimension 8.000" L x 0.252" W (203.20mm x 6.40mm)
Height - Seated (Max) 1.500" (38.10mm)
Lead Style Solder Lugs
Package / Case Radial, Flat Oval
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.29.0000
Standard Package 5
Win Source Part Number 1046063-508AS500KDG2
Ultra Librarian 3D Model Ultra Librarian 508AS500KDG2 CAD Model

Description

The 1046063-508AS500KDG2 is a chassis mount resistor designed for high power applications.

  • Power Rating: 48W
  • Resistance: 50 Ohms
  • Tolerance: ±10%
  • Features: non-inductive and pulse withstanding
  • Operating Temperature Range: -55°C to 230°C
  • Package: radial, flat oval
  • Mounting: through solder lugs
  • Feature: moisture resistant
  • Material: ceramic
  • Manufacturer: Ohmite
