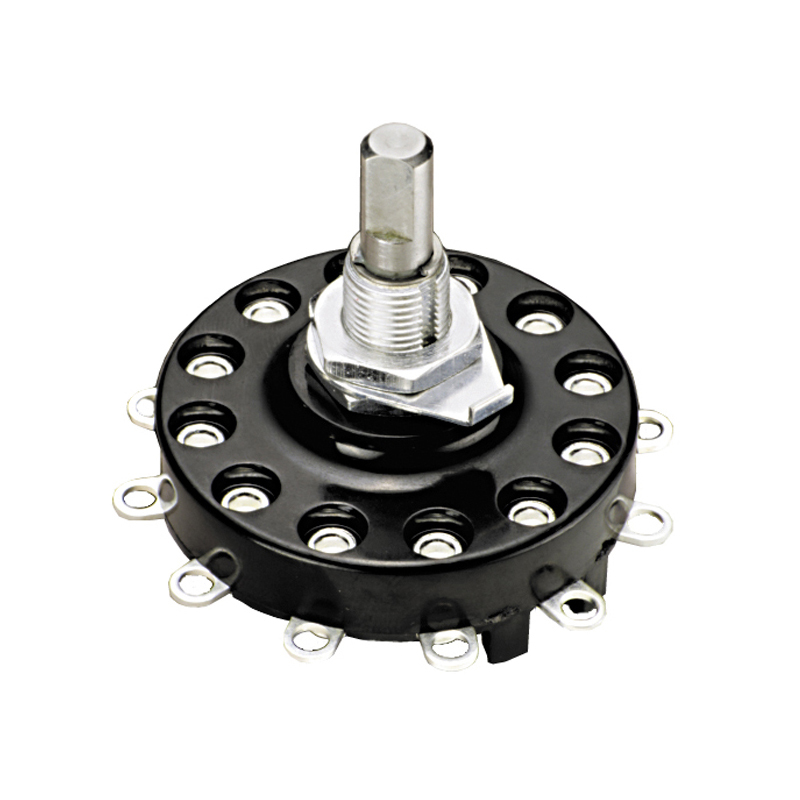

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Number of Positions 8
Index Stops Fixed
Number of Decks 1
Number of Poles per Deck 1
Circuit per Deck SP8T
Contact Timing Non-Shorting (BBM)
Current Rating (Amps) 15A (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 20 V
Actuator Type Flatted (6.35mm Dia)
Actuator Length 12.70mm
Angle of Throw 30°
Contact Material Silver Alloy
Mounting Type Panel Mount
Termination Style Solder Lug
Depth Behind Panel 28.70mm
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1559183-111-8E
Ultra Librarian 3D Model Ultra Librarian 111-8E CAD Model
