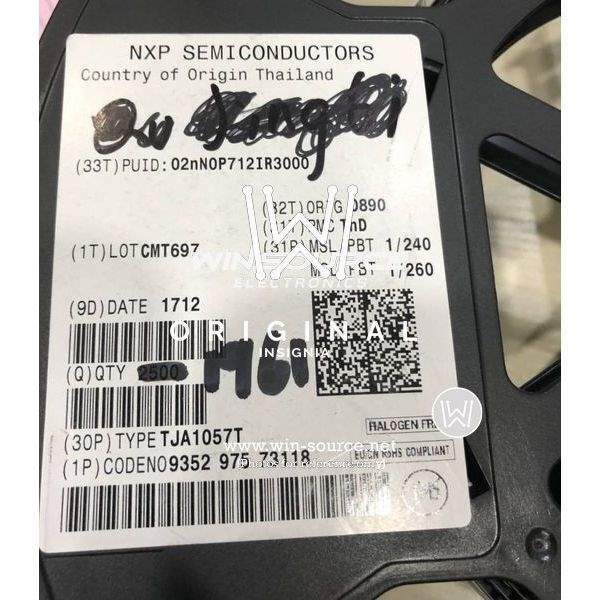

Product Overview: TJA1057T,118 by NXP Semiconductors

The TJA1057T,118 is a high-performance, standalone Controller Area Network (CAN) transceiver from NXP Semiconductors. This device offers a robust interface between a CAN protocol controller and the physical two-wire CAN bus. Designed for high-speed automotive networking, it is compliant with the ISO 11898-2:2016 standard and provides a seamless connection to the vehicle's onboard diagnostics, infotainment systems, and advanced driver-assistance systems (ADAS).

Key Features

• High-Speed CAN Interface: Supports CAN protocols up to 1 Mbit/s, ensuring swift and reliable communication between ECUs.
• Silent Mode: In this mode, the TJA1057T,118 can monitor CAN communication on the bus without influencing it, making it ideal for nodes that do not need to actively participate in the network.
• Low-Power Mode: An energy-efficient feature that reduces power consumption when the network is idle or the device is not in active use.
• Automatic Thermal Shutdown: Protects the device from damage due to excessive temperature rise.
• Bus Pins Protection: Enhanced protection against transients in the automotive environment, providing improved reliability and longevity.

Applications

• Automotive Networks
• Onboard Diagnostics
• Infotainment Systems
• Advanced Driver-Assistance Systems (ADAS)
• Industrial Automation

Product Specifications

The TJA1057T,118 transceiver operates over a wide temperature range, making it suitable for harsh automotive environments. It is available in an SO8 package, which is widely accepted in the industry and suitable for space-constrained applications. The device features differential receiver capabilities, thus ensuring high immunity to electromagnetic interference (EMI) and enabling reliable data transmission even in noisy environments.

As a part of NXP's commitment to quality and performance, the TJA1057T,118 transceiver is a testament to the company's expertise in automotive-grade communication solutions. Whether for traditional vehicle networking or the latest in vehicle automation and connectivity, this CAN transceiver is an excellent choice for designers looking to implement a fast, robust, and energy-efficient communication interface.
