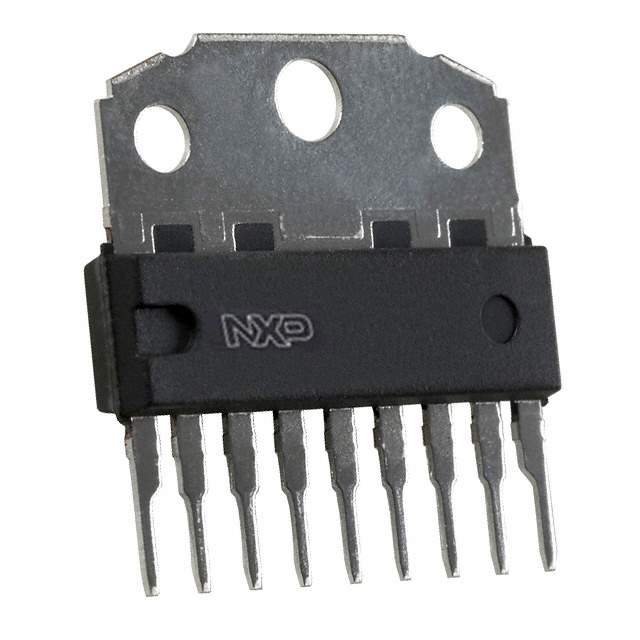

The NXP TDA8943SF represents a cutting-edge solution for compact audio amplification needs. This high-efficiency, Class-D audio power amplifier is designed for a wide range of applications, from TV and monitor audio to portable speakers and beyond.

Key Features

• Amplifier Type: Class D
• Output Power: Capable of delivering up to 1 x 15 W into 8 ohms @ THD = 10%
• Supply Voltage: Operates over a wide supply voltage range (±10 V to ±25 V)
• Efficiency: High efficiency, reducing the need for heat sinks and saving on PCB space
• Thermal Protection: Includes an on-chip temperature protection feature that safeguards the IC from overheating
• Standby and Mute Functions: Integrated standby and mute functions to minimize power consumption when not in active use

Product Advantages

The TDA8943SF is designed with the modern consumer in mind. Its ability to drive a powerful audio performance from a small package makes it an ideal choice for applications where space is at a premium. The integration of Class-D technology provides a significant advantage in terms of power efficiency, offering a green solution that minimizes energy consumption and heat generation.

Moreover, the built-in protection features ensure reliability and longevity, protecting investments in audio equipment. The inclusion of standby and mute functions allows for intelligent power management, further contributing to the product's energy efficiency.

Applications

This versatile amplifier can be used in a variety of settings, including but not limited to:

• Flat-panel televisions and monitors
• Portable audio devices
• Active speakers
• Home theater systems

Design Support

NXP provides comprehensive design support for the TDA8943SF, including application notes, reference designs, and technical documentation to assist developers in integrating this amplifier into their products smoothly and effectively.
