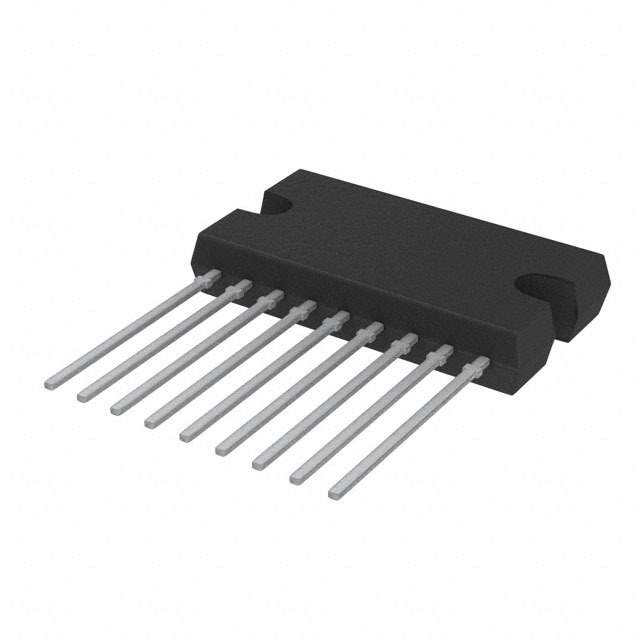

The TDA2616/N1,112 is a high-fidelity audio power amplifier integrated circuit produced by NXP Semiconductors. This robust semiconductor device is designed to deliver a seamless audio amplification experience for a wide range of consumer electronics, including home stereo systems, television sets, and active speakers.

Key Features

• Output Power: The TDA2616/N1,112 is capable of delivering up to 2 x 12 W of continuous output power into an 8-ohm load at a supply voltage of ±16 V, making it suitable for medium-power audio applications.
• Supply Voltage Range: This amplifier IC operates over a wide supply voltage range from ±6 V to ±25 V, providing versatility in various power supply configurations.
• Low Distortion: It ensures low total harmonic distortion (THD) and noise, which results in high-quality sound reproduction.
• Thermal Protection: The device includes an integrated thermal protection circuit that automatically shuts down the amplifier in the event of overheating, safeguarding it against potential thermal damage.
• Short-circuit Safe: The TDA2616/N1,112 is designed to be safe against short-circuits, ensuring reliable operation even in adverse conditions.
• Mute Mode: A mute function is provided that can be activated to reduce power consumption and prevent audible pops and clicks during power cycling.

Applications

The versatility and performance of the TDA2616/N1,112 make it an excellent choice for a variety of audio amplification applications, including:

• Hi-Fi audio systems
• Television sets
• Active speakers
• Small home theater systems
• DIY audio projects

Technical Specifications

Overall, the TDA2616/N1,112 from NXP Semiconductors is a reliable and efficient solution for audio amplification needs, providing high-quality sound with minimal distortion and robust protection features.
