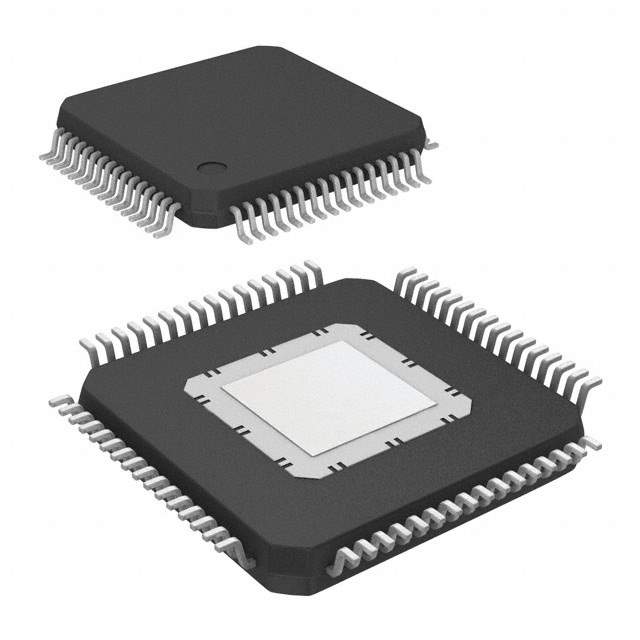

NXP S912ZVMC12F2WKHR Microcontroller

The NXP S912ZVMC12F2WKHR is a high-performance microcontroller designed to meet the rigorous demands of automotive and industrial applications. This device is part of the S12 MagniV family, which integrates a sophisticated MCU with a smart voltage regulator to simplify system design and reduce overall system cost.

This microcontroller features a 16-bit S12 core, operating at a frequency of up to 25 MHz, which provides a perfect blend of processing power and efficiency. It comes with 12KB of flash memory, ensuring ample space for complex programs and algorithms. Additionally, the 2KB of RAM allows for efficient data handling and operation, making it suitable for time-critical tasks.

The S912ZVMC12F2WKHR is equipped with a range of peripherals that enhance its functionality. It includes two Serial Communication Interface (SCI) modules, allowing for easy serial communication with other devices. An SPI module is also available for high-speed serial data transfer. For analog signal management, the device boasts an integrated 12-bit Analog-to-Digital Converter (ADC) with multiple channels, enabling precise measurement and control of analog signals.

One of the standout features of this microcontroller is its robust on-chip voltage regulator. The integrated voltage regulator allows the microcontroller to operate directly from the vehicle's battery, simplifying power supply design and providing a high level of noise immunity.

The S912ZVMC12F2WKHR is designed with reliability in mind, incorporating features such as a Watchdog Timer and a Low Voltage Detect circuit to ensure stable operation under various conditions. It also includes a range of timers, including a Real-Time Interrupt timer and a Pulse Width Modulator (PWM), which are essential for managing time-sensitive tasks and controlling actuators.

For secure applications, the device offers a range of security features, including a Memory Protection Unit (MPU) and a Secure Access Module (SAM), which safeguard the integrity of the code and data.

In summary, the NXP S912ZVMC12F2WKHR microcontroller is a robust and versatile solution for automotive and industrial control systems, offering a powerful S12 core, integrated voltage regulation, and a comprehensive set of peripherals and security features to meet the needs of modern embedded applications.
