The NXP PTN3460IBS/F1MP is a high-performance, low-power DisplayPort to LVDS bridge device that serves as an innovative solution for connecting legacy display panels to the newest digital video sources. It is a versatile and essential component for applications requiring the integration of modern video interfaces with established display technologies.

Key Features

• DisplayPort 1.2 Compliant: The device supports up to 5.4 Gbps link rate and HBR2 (High Bit Rate 2), ensuring compatibility with the latest DisplayPort technology.
• Integrated LVDS Interface: It features a dual-channel LVDS interface capable of driving display panels with resolutions up to WUXGA (1920x1200) at 60Hz, making it suitable for high-resolution displays.
• On-chip Microcontroller: The PTN3460IBS/F1MP includes an embedded microcontroller that manages the DisplayPort configuration and provides a flexible and programmable platform.
• Advanced Power Management: The device offers various power-saving modes, significantly reducing power consumption when the display is off or in standby.
• EDID Management: It supports EDID (Extended Display Identification Data) pass-through and translation between DisplayPort and LVDS, ensuring seamless communication between the source and the display.
• Plug and Play: Designed for easy implementation, the PTN3460IBS/F1MP facilitates plug-and-play operation without the need for additional drivers or software.

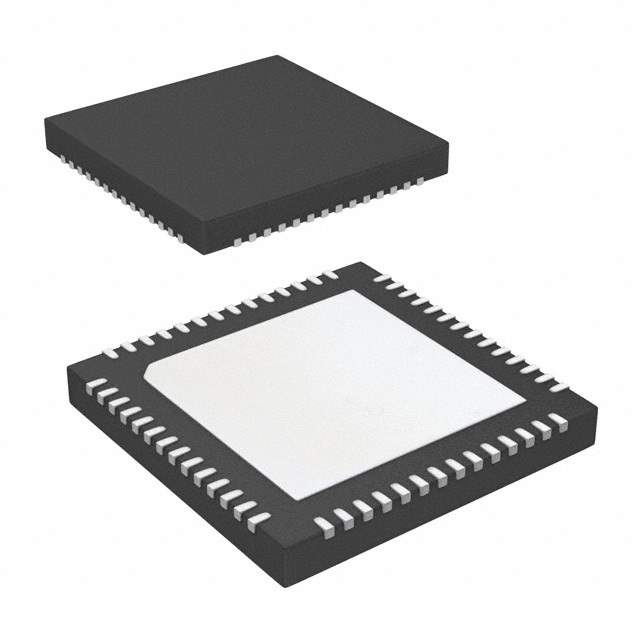

• Compact Package: The device comes in a small HVQFN56 package, making it ideal for space-constrained applications.

Applications

The PTN3460IBS/F1MP is suitable for a broad range of applications, including notebook computers, desktop monitors, projectors, and industrial displays. Its ability to bridge the gap between new DisplayPort sources and existing LVDS displays makes it an indispensable component for system designers looking to upgrade video capabilities without the need for a complete redesign of the display subsystem.
