The NXP PMEG3030EP is a highly efficient, low voltage drop Schottky barrier rectifier designed for a wide range of applications. This surface-mounted diode is part of NXP's extensive portfolio of energy-saving, high-performance diodes which are known for their reliability and robustness.

Key Features

• Low Forward Voltage: The PMEG3030EP offers a low forward voltage drop, typically 0.36 V at 3 A, which enhances the overall efficiency of the application it is used in, making it an ideal choice for energy-sensitive circuits.
• High Efficiency: With its Schottky barrier design, this diode achieves high efficiency, making it suitable for applications where power loss minimization is critical.
• Reverse Voltage: It supports a maximum reverse voltage of 30 V, providing a good margin for overvoltage protection in many low voltage applications.
• Surge Current Capability: The PMEG3030EP can handle surge currents, ensuring it can withstand transient overloads without failure.
• Low Leakage Current: The device exhibits a low leakage current, which contributes to reduced power loss when the diode is in the reverse bias condition.

Applications

The PMEG3030EP is versatile and can be used in various applications, including:

• Switch Mode Power Supplies (SMPS)
• DC-DC converters
• Freewheeling diodes in low voltage applications
• Power management devices
• Reverse polarity protection circuits

Package and Environmental Compliance

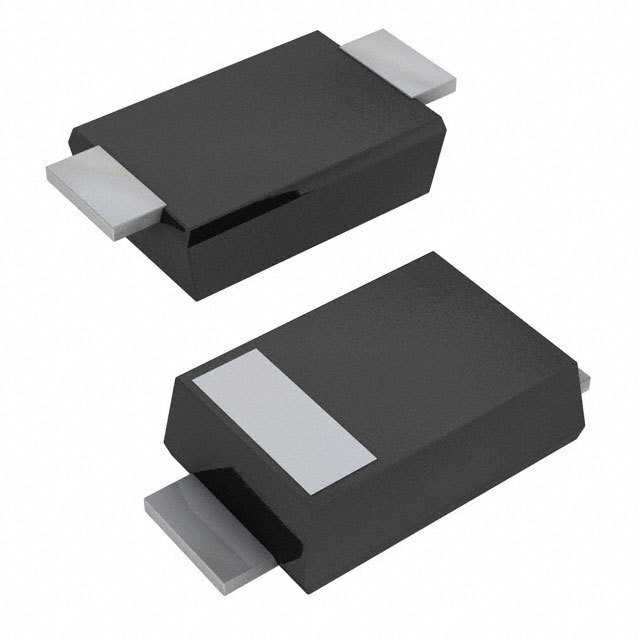

The diode is packaged in a CFP15 (SOD128), which is a small and flat lead Surface-Mounted Device (SMD) package. This compact form factor makes it suitable for high-density circuit boards. Additionally, the PMEG3030EP is RoHS compliant and free from lead (Pb), ensuring it meets environmental standards and restrictions on hazardous substances.

Conclusion

In summary, the NXP PMEG3030EP Schottky diode is a high-performance component that offers a blend of efficiency, reliability, and environmental compliance. Its low forward voltage, high surge current capability, and low leakage current make it an excellent choice for designers looking to optimize their power-sensitive applications.
