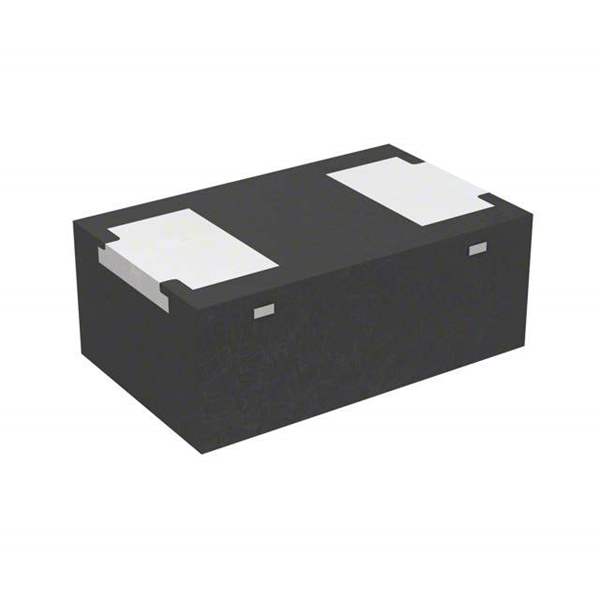

Overview of PMEG3005ELD,315 Schottky Diode from NXP

The PMEG3005ELD,315 is a high-performance Schottky barrier rectifier designed by NXP Semiconductors, renowned for their innovation in the semiconductor industry. This component is specifically engineered to offer low forward voltage drop and reduced power losses, making it an excellent choice for high-efficiency power management applications.

Key Features

• Low Forward Voltage: The PMEG3005ELD,315 boasts a low forward voltage, which means it requires less voltage to become conductive, thus improving overall system efficiency.
• Low Reverse Leakage Current: With its reduced reverse leakage current, this diode minimizes power loss while in the reverse blocking state, contributing to the energy-saving characteristics of the end application.
• High Forward Surge Current Capability: This diode can handle high surge currents, making it robust and reliable for applications that experience transient overcurrent conditions.
• Compact Package: Encased in a SOD-123W small and flat lead Surface-Mounted Device (SMD) package, the PMEG3005ELD,315 is suitable for space-constrained applications.

Applications

The PMEG3005ELD,315 is versatile and can be used in a variety of applications, including:

• Switch Mode Power Supplies (SMPS)
• DC/DC converters
• Freewheeling diodes in converters and motor control circuits
• Power management devices
• Reverse polarity protection circuits

Product Specifications

Parameter Value Package SOD-123W Repetitive Reverse Voltage V<sub>RRM 30 V Average Forward Current I<sub>F(AV) 0.5 A Non-repetitive Peak Forward Surge Current I<sub>FSM 5.5 A Forward Voltage V<sub>F Typically 0.37 V at I<sub>F = 0.5 A Reverse Current I<sub>R Typically 2 µA at V<sub>R = 30 V

With its combination of low power loss, high efficiency, and small footprint, the PMEG3005ELD,315 from NXP is an ideal choice for designers looking to enhance the performance and reliability of their power management systems.
