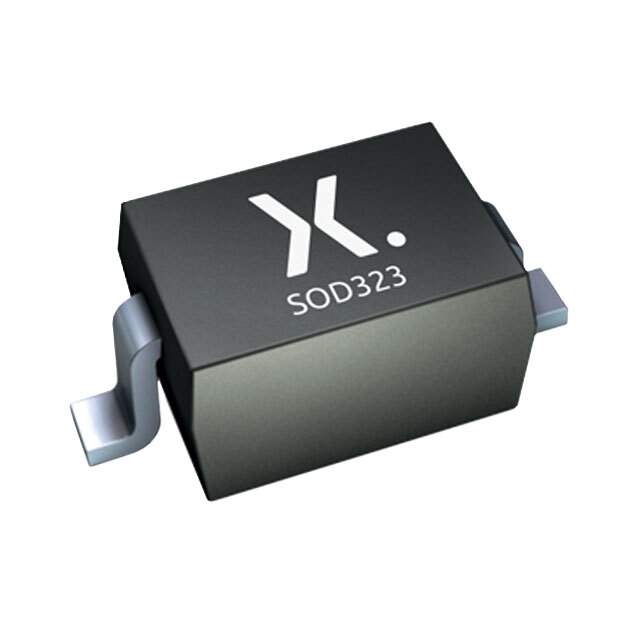

The NXP PMEG2020AEA is a highly efficient, low forward voltage drop Schottky barrier diode designed for applications requiring fast switching and low power loss. This diode is encapsulated in a compact SOD-323 (SC-76) surface-mounted device (SMD) package, which is optimized for automated assembly processes and occupies minimal space on a printed circuit board.
Key Features
- Low Forward Voltage: The PMEG2020AEA features a low forward voltage drop, which enhances overall system efficiency by reducing power losses during conduction.
- High Efficiency: With its Schottky barrier design, this diode offers superior efficiency compared to traditional PN-junction diodes, making it ideal for power-sensitive applications.
- High Current Capability: This device can handle continuous forward currents up to 2 A, making it suitable for a wide range of power management tasks.
- Low Reverse Leakage Current: The low reverse leakage current characteristic of the PMEG2020AEA ensures minimal power loss when the diode is in the off state, contributing to the overall efficiency of the circuit.
- Fast Switching Speed: Schottky diodes are known for their fast switching capabilities, and the PMEG2020AEA is no exception, enabling high-frequency operation and quick transitions.
Applications
The NXP PMEG2020AEA is versatile and can be used in various applications, including:
- Switching power supplies
- DC-DC converters
- Power management systems
- Reverse polarity protection circuits
- Low-voltage, high-frequency inverters
- Free-wheeling diodes in converters and motor control circuits
Product Specifications
Parameter
Value
Package
SOD-323 (SC-76)
Maximum Continuous Forward Current
2 A
Forward Voltage Drop
Typically 0.38 V at 1 A
Reverse Leakage Current
Typically 15 μA at 20 V
Maximum Junction Temperature
150°C
The PMEG2020AEA is a reliable choice for designers looking to improve the efficiency and performance of their power management systems. Its compact footprint, combined with its robust electrical characteristics, make it a valuable component in modern electronic devices.
