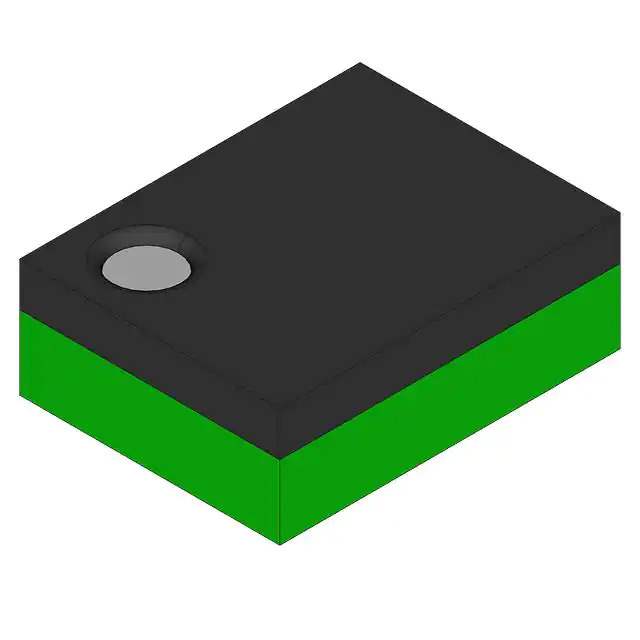

The NTB0104UK is a versatile and high-performance bi-directional level translator from NXP Semiconductors, designed to address the need for a reliable method of voltage level translation between devices operating at different voltage levels. This innovative component is part of NXP's extensive logic products portfolio, which is renowned for its quality and efficiency in various electronic applications.

Key Features

• Bi-directional Level Translation: The NTB0104UK is capable of translating signals between two different voltage domains, ranging from 1.0V to 3.6V on the A side and 1.8V to 5.5V on the B side, making it highly adaptable for multi-voltage systems.
• Auto-Direction Sensing: The device automatically senses the direction of data flow without the need for a direction control signal, simplifying design and reducing pin count.
• High-Speed Operation: With its ability to support data rates up to 100 Mbps, the NTB0104UK is suitable for high-speed signal translation in applications such as mobile phones, computing, and consumer electronics.
• Low Standby Current: The power consumption is minimized with a low standby current, making it an excellent choice for power-sensitive designs.
• ESD Protection: Integrated Electrostatic Discharge (ESD) protection circuits safeguard the device against the damaging effects of static electricity, ensuring greater reliability and longevity.

Applications

The NTB0104UK is ideally suited for a wide range of applications, including but not limited to:

• Mobile Devices
• Computing Systems
• Consumer Electronics
• Data Communication
• Level Shifting for I/O Expansion Modules

Quality and Reliability

NXP Semiconductors is committed to delivering products that meet the highest standards of quality and reliability. The NTB0104UK is manufactured with this commitment in mind, ensuring that it performs to the expectations of the most demanding electronic systems. With NXP's proven track record, designers can be confident in integrating the NTB0104UK into their solutions.
