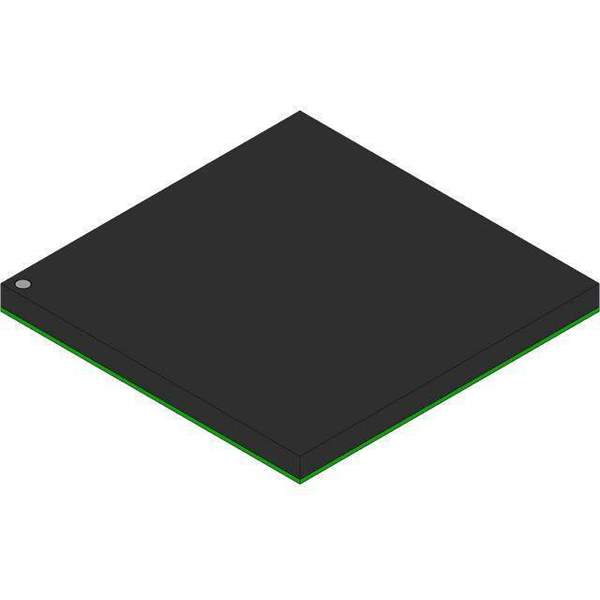

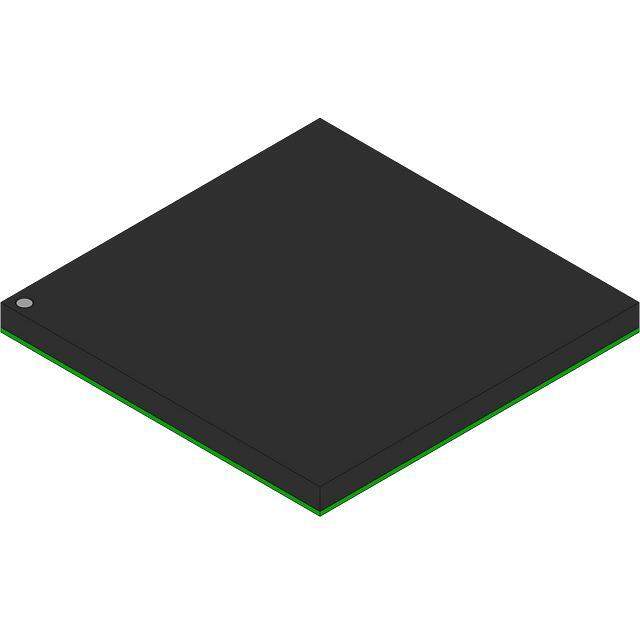

NXP MPC561MZP56 Microcontroller

The NXP MPC561MZP56 is a highly integrated microcontroller designed to cater to the demanding needs of automotive and industrial control applications. This powerful MCU is part of the MPC500 family, which is renowned for its exceptional performance, reliability, and a wide range of features.

At the heart of the MPC561MZP56 is a 32-bit RISC processor core that is compliant with the PowerPC architecture. This core is capable of operating at speeds up to 56 MHz, which makes it an ideal choice for real-time applications that require quick data processing and timely responses. With its advanced architecture, this microcontroller offers a perfect balance between computational power and power consumption, ensuring efficiency in various applications.

The microcontroller comes with a robust set of features including 512 KB of flash memory, which provides ample space for complex application code and data storage. Additionally, it boasts 26 KB of RAM, which allows for smooth and efficient task execution and data handling. The on-chip memory is complemented by a range of peripherals, such as multiple timers, watchdog timers, and a queued analog-to-digital converter (ADC) that enhances the MCU's ability to interact with analog signals and sensors.

For communication purposes, the MPC561MZP56 is equipped with multiple serial communication interfaces, including CAN (Controller Area Network) modules. These modules are essential for automotive applications where reliable and robust communication is required. The microcontroller also supports additional serial protocols, ensuring versatility in system design and the ability to interface with a wide array of external devices.

Security and reliability are paramount in the design of the MPC561MZP56. It features a Memory Protection Unit (MPU) that safeguards critical system memory areas from unauthorized access, thus enhancing system integrity. Furthermore, the chip is designed to operate over an extended temperature range, which makes it suitable for harsh environments often encountered in automotive and industrial settings.

In summary, the NXP MPC561MZP56 microcontroller is a sophisticated and versatile component that provides a solid foundation for complex control systems. Its combination of processing power, memory capabilities, and extensive peripheral set makes it a top choice for engineers and developers looking to create advanced and reliable applications.
