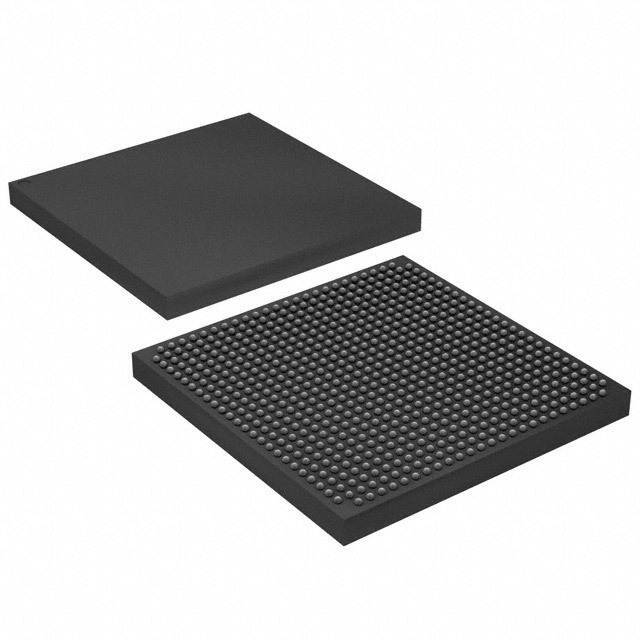

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Intel
Packaging Tray
Part Status Obsolete (End Of Life)
Number of LABs/CLBs 2566
Number of Logic Elements/Cells 25660
Total RAM Bits 1944576
Number of I/O 455
Supply Voltage (V) 1.425V ~ 1.575V
Mounting Style SMD
Temperature Range - Operating 0°C ~ 85°C
Manufacturer Package 672-BBGA, FCBGA
Supplier Device Package 672-FBGA (27x27)
Part Number Series EP1SGX25
Manufacturer Pack Quantity 40
MSL Level 3 (168 Hours)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 813339-EP1SGX25DF672C7
Ultra Librarian 3D Model Ultra Librarian EP1SGX25DF672C7 CAD Model

Description

The Intel 813339-EP1SGX25DF672C7 is an obsolete FPGA designed for use in a wide range of applications including digital signal processing, image processing, and control systems.

  • I/O Pins: 455
  • LABs/CLBs: 2566
  • Logic Elements/Cells: 25660
  • Total RAM Bits: 1944576
  • Package: 672-FBGA (27x27)
  • Supply Voltage: 1.425V to 1.575V

The device is suitable for use in a wide range of applications including digital signal processing, image processing, and control systems.
