NXP MC9S08DN60AMLH Microcontroller

The NXP MC9S08DN60AMLH is a highly integrated and versatile microcontroller designed to cater to a wide range of embedded applications. It is part of the S08 family of 8-bit microcontrollers which are well-known for their robustness, efficiency, and ease of use. This particular model is engineered to deliver exceptional performance with a focus on low-power operation and connectivity features.

The core of the MC9S08DN60AMLH operates at a maximum frequency of 40 MHz, providing a balanced combination of processing speed and power consumption. It is built on NXP's high-density HCS08 central processing unit (CPU), which offers a rich instruction set and efficient architecture to optimize application code. With 60 KB of on-chip flash memory, developers have ample space for complex programs, while 4 KB of RAM ensures smooth data handling for real-time operations.

One of the standout features of this microcontroller is its comprehensive set of peripherals. It includes multiple serial communication interfaces such as I2C, SPI, and SCI, enabling seamless integration with a variety of sensors, actuators, and other microcontrollers. Additionally, it boasts an 8-channel, 10-bit analog-to-digital converter (ADC) which allows for precise data acquisition from analog sensors, essential for applications requiring accurate measurement and control.

For enhanced functionality, the MC9S08DN60AMLH is equipped with an array of timers, including an 8-channel timer/pulse-width modulator (TPM) module. This is particularly useful for motor control, lighting control, and other time-sensitive tasks. Its robust design also incorporates a background debugging system (BDS) and a single-wire background debug interface, simplifying the development process by enabling real-time debugging and programming.

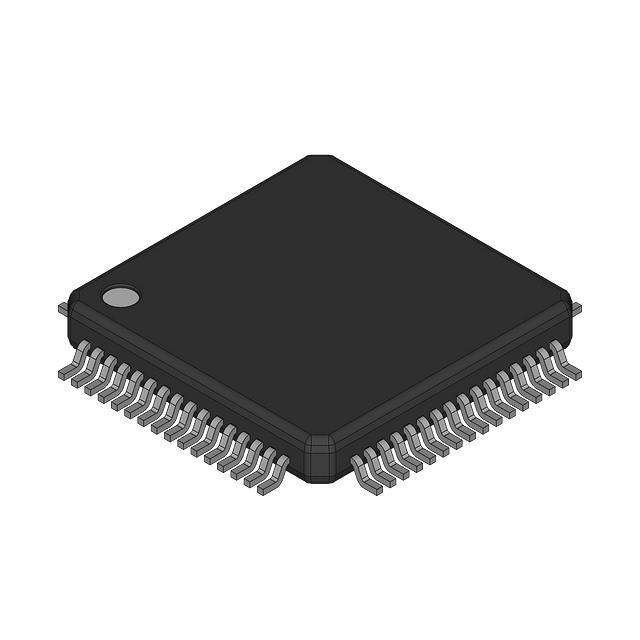

The package of the MC9S08DN60AMLH is a 64-pin LQFP (Low-profile Quad Flat Package), which offers a compact footprint while providing enough pins for interfacing with external components. It operates across a wide voltage range of 1.8V to 3.6V, which, along with its power-saving modes, makes it an excellent choice for battery-operated devices.

In summary, the NXP MC9S08DN60AMLH is a powerful and flexible microcontroller that is well-suited for a variety of applications that demand reliability, efficient power management, and connectivity. Its rich set of features and peripherals, combined with the ease of use of the S08 platform, make it an ideal choice for designers looking to create sophisticated embedded systems.
