The NXP MC9S08AC16CFDE is a sophisticated microcontroller that is part of the S08 family, designed to offer a high-performance solution for embedded systems. This microcontroller is ideal for a wide range of applications, including industrial control, automotive, consumer electronics, and IoT devices. The MC9S08AC16CFDE is built on a HCS08 core and operates at a maximum frequency of 40 MHz, providing a perfect balance between speed and power efficiency.
Key Features:
- Core: HCS08 CPU at up to 40 MHz, with a CISC architecture that ensures efficient use of memory and ease of programming.
- Memory: Comes equipped with 16KB of flash memory and 1KB of RAM, allowing for robust program storage and efficient data handling.
- Digital Peripherals: Includes multiple 8-bit and 16-bit timers, a 12-channel 10-bit analog-to-digital converter (ADC), and up to 38 general-purpose I/O pins for versatile interfacing with external components.
- Communication Interfaces: Features I2C, SCI (UART), and SPI modules for comprehensive communication capabilities with peripherals and other microcontrollers.

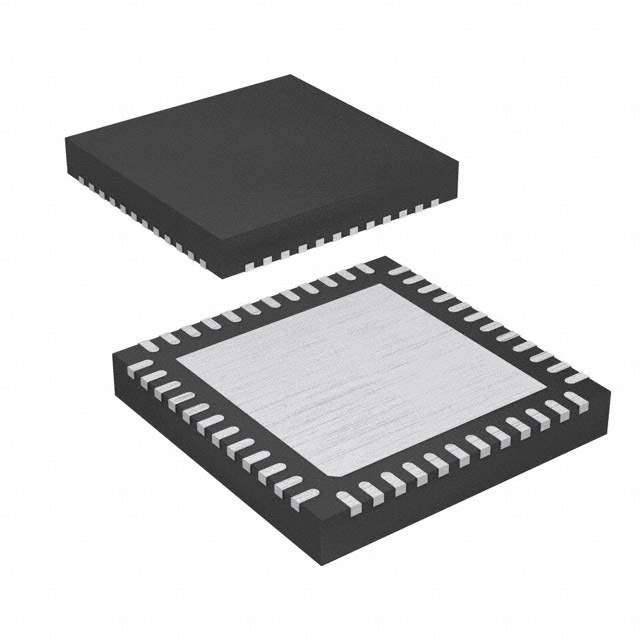

- Package: Available in a 48-pin QFN package, which is ideal for space-constrained applications.
- Power Management: Supports multiple power-saving modes, including stop and wait modes, to optimize power consumption for battery-powered or energy-sensitive applications.
- Temperature Range: Operates within an industrial temperature range of -40°C to +85°C, ensuring reliable performance under extreme conditions.
- Development Support: Compatible with NXP's CodeWarrior development environment, which provides an integrated development experience with tools for coding, debugging, and programming.
Applications:
The MC9S08AC16CFDE is a versatile microcontroller that can be used in various applications. Its robust set of features and peripherals makes it suitable for:
- Automotive control systems
- Industrial automation
- Consumer electronics
- Home automation and security systems
- Healthcare devices
- Portable instrumentation
With its combination of performance, memory, and rich peripheral set, the NXP MC9S08AC16CFDE microcontroller is a powerful choice for designers seeking a reliable and flexible MCU for their next project.
