NXP MC68HC908JL8MFAE Microcontroller

The NXP MC68HC908JL8MFAE is a powerful and versatile 8-bit microcontroller that serves as a crucial component in a wide range of electronic applications. Designed for cost-sensitive and high-volume markets, this microcontroller is particularly well-suited for automotive, industrial control, and consumer electronics where reliability and efficiency are paramount.

At the heart of the MC68HC908JL8MFAE is a high-performance HC08 core that operates at a maximum frequency of 8 MHz. This core is supported by 8KB of on-chip flash memory, which is ideal for storing firmware and application code. Additionally, it boasts 256 bytes of Random Access Memory (RAM), providing sufficient space for temporary data storage and efficient task management.

Key Features:

• Core: High-performance HC08 CPU core operating at up to 8 MHz frequency.
• Memory: 8KB of flash memory for program storage and 256 bytes of RAM for data processing.
• I/O Ports: Multiple general-purpose input/output (GPIO) ports enabling versatile interfacing with peripherals and other devices.
• Timers: Integrated 16-bit timer system for precise event management and scheduling.
• Analog-to-Digital Converter (ADC): On-board ADC with multiple channels for interfacing with analog sensors and converting signals to digital values.
• Power Management: Sophisticated power-saving modes to ensure low power consumption for battery-powered applications.

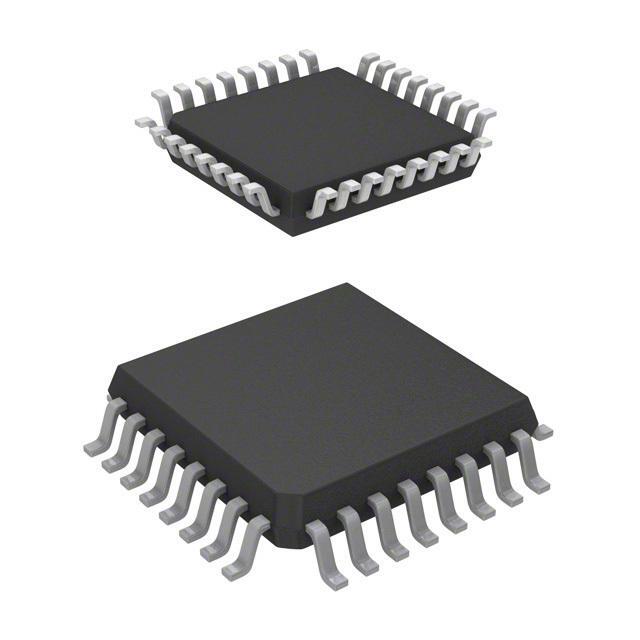

• Package: Available in a 32-pin QFP package, providing a compact footprint for space-constrained applications.

The MC68HC908JL8MFAE also includes robust on-chip peripherals such as a serial communications interface (SCI) for UART communication, which enables easy serial data exchange with other microcontrollers and devices. Furthermore, it features a watchdog timer to ensure system stability and to recover from unexpected conditions.

For developers, NXP provides comprehensive software and hardware support, including development tools and reference designs, to facilitate rapid prototyping and streamline the product development process. The combination of performance, memory, and rich peripheral set makes the MC68HC908JL8MFAE a reliable choice for designers looking to balance cost and functionality in their embedded systems.
