Product Overview: MC68HC11E0CFNE3

The MC68HC11E0CFNE3 is a versatile microcontroller unit (MCU) from NXP Semiconductors, designed to cater to a wide range of embedded applications. This robust MCU is based on the HC11 architecture, which is renowned for its exceptional mix of high performance and low power consumption.

Key Features

• Advanced CPU: At the heart of the MC68HC11E0CFNE3 is an advanced 8-bit CPU, capable of handling complex computations with ease. The processor is designed to operate at a maximum frequency of 3 MHz, providing a balanced performance for time-sensitive tasks.
• On-Chip Memory: It comes equipped with 512 bytes of RAM and 12KB of ROM, offering ample space for program storage and data processing without the need for external memory components.
• Rich Peripheral Set: The MCU features a variety of built-in peripherals, including an 8-channel, 8-bit analog-to-digital converter (ADC), serial communication interfaces (SCI and SPI), and a timer system that supports input capture, output compare, and pulse accumulator functions.
• Flexible I/O Options: With up to 38 general-purpose I/O pins, the MC68HC11E0CFNE3 provides the flexibility needed to interface with a wide array of sensors, actuators, and other electronic components.
• Power Management: Designed with power efficiency in mind, the microcontroller features several power-saving modes, including stop and wait modes, which help reduce power consumption during idle periods.

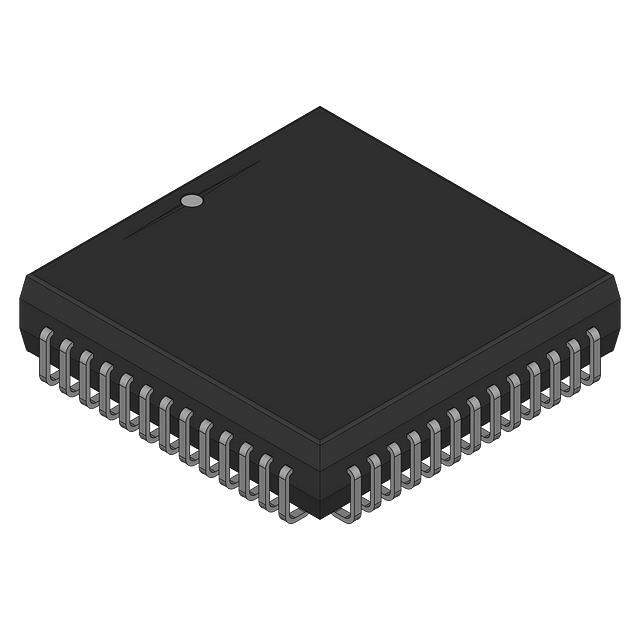

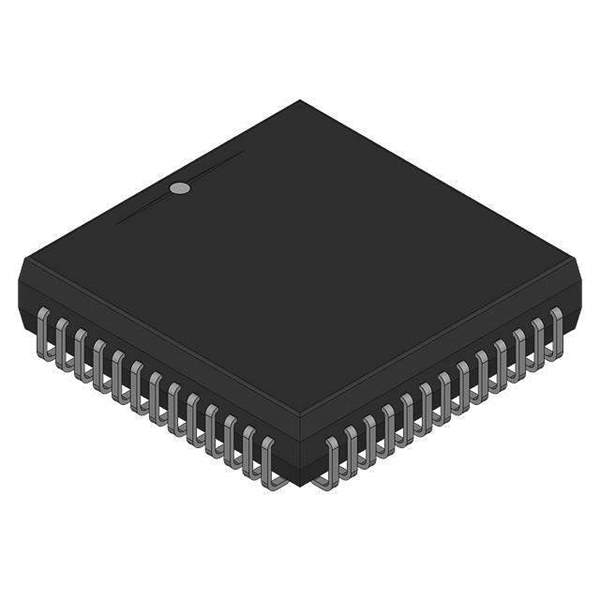

• Package and Temperature Range: The MC68HC11E0CFNE3 is available in a 52-pin PLCC package and is rated for an industrial temperature range of -40°C to +85°C, making it suitable for harsh environments.

Applications

The MC68HC11E0CFNE3 is ideal for a broad spectrum of applications, including but not limited to:

• Automotive control systems
• Industrial automation
• Robotics
• Home appliances
• Consumer electronics

With its rich feature set and robust design, the NXP MC68HC11E0CFNE3 MCU is a reliable choice for developers looking to create sophisticated and power-efficient embedded systems.
