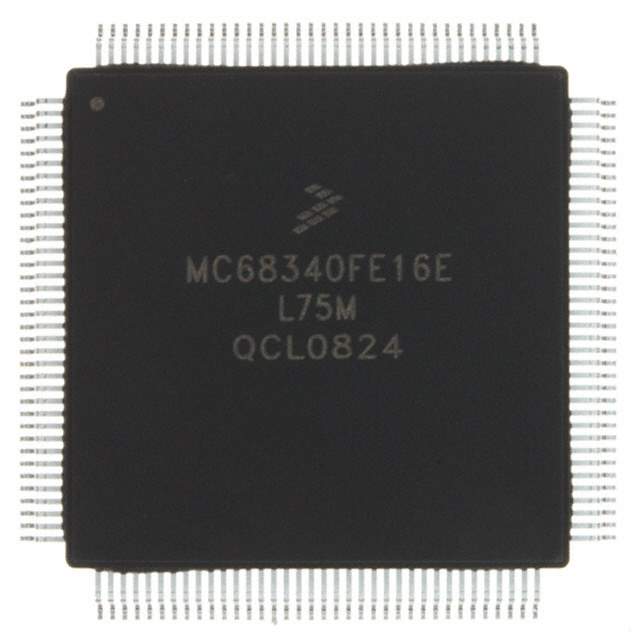

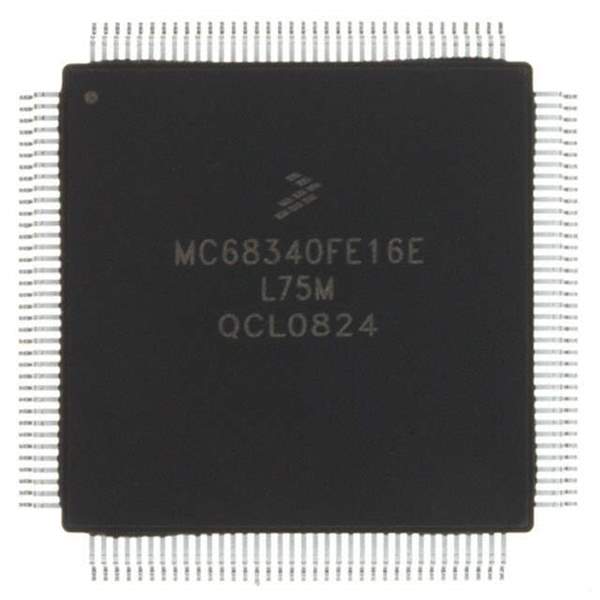

NXP MC68340FE16E Integrated Processor

The NXP MC68340FE16E is a high-performance integrated processor that combines the versatility of a 32-bit central processing unit with the flexibility of a high-speed static design. This processor is a member of the 68000 family, which is renowned for its powerful instruction set and the ability to handle complex computing tasks efficiently.

At the core of the MC68340FE16E is the CPU32, which is an advanced 32-bit microprocessor that provides a solid foundation for both real-time and multitasking applications. The processor operates at a frequency of 16 MHz, delivering the computational power required for embedded control systems, industrial automation, and communication devices.

This integrated processor is equipped with a variety of on-chip peripherals that enhance its functionality. These include a DMA (Direct Memory Access) controller, timer modules, and a serial communication interface, which simplifies the design of complex systems by reducing the need for additional external components. The DMA controller streamlines data transfers between memory and peripherals without burdening the CPU, thus improving the overall system throughput.

The MC68340FE16E also features a System Integration Module (SIM40), which provides support for system-level functions such as chip select logic, interrupt control, and bus arbitration. This integration helps to minimize system costs and power consumption, while also simplifying the design process.

Designed with an emphasis on compatibility, the MC68340FE16E can easily interface with other members of the 68000 microprocessor family. This allows for seamless integration into existing systems and facilitates future upgrades or expansions. The processor is packaged in a 132-pin PQFP (Plastic Quad Flat Pack), which is suitable for surface mount technology and offers a compact footprint for space-constrained applications.

Overall, the NXP MC68340FE16E is a robust and reliable choice for designers looking to create sophisticated systems that require a high-performance processor with integrated peripherals. Its combination of processing power, on-chip features, and system integration capabilities make it an ideal solution for a wide range of embedded applications.
