NXP MC56F8167VPYE Digital Signal Controller

The NXP MC56F8167VPYE is a high-performance digital signal controller (DSC) that combines the processing power of a digital signal processor (DSP) with the functionality and peripheral set of a microcontroller (MCU). This hybrid device is designed to cater to a wide range of applications, from industrial control to motor control, power management, and embedded audio processing.

At the heart of the MC56F8167VPYE is a 32-bit DSP core that operates at a frequency of up to 60 MHz. This core is optimized for high-speed numeric processing, which makes it ideal for real-time control applications that require fast and accurate computations. The DSC also features a single-cycle 16 x 16-bit parallel Multiplier-Accumulator (MAC), which is crucial for signal processing algorithms.

The MC56F8167VPYE offers 128 KB of on-chip flash memory, allowing for reliable storage of application code and data with the added benefit of in-circuit programmability. Additionally, it includes 18 KB of static RAM (SRAM), providing ample space for temporary data storage during operation.

From a peripheral perspective, the MC56F8167VPYE is equipped with a rich set of features. It includes multiple timers, a Quadrature Encoder Interface (QEI) for motor control applications, and a Pulse Width Modulation (PWM) module that supports high-resolution PWM outputs. These features are essential for precise control in power conversion and motor drive systems. The DSC also has an Analog-to-Digital Converter (ADC) with up to 16 channels, enabling it to interface with various sensors and transducers.

Connectivity is another strong suit of the MC56F8167VPYE, as it includes a Serial Peripheral Interface (SPI), two CAN modules for industrial networking, and an I2C bus for communication with other ICs and sensors. The device also provides a Serial Communication Interface (SCI) for UART communication, which is commonly used for debugging and interfacing with PCs or other serial devices.

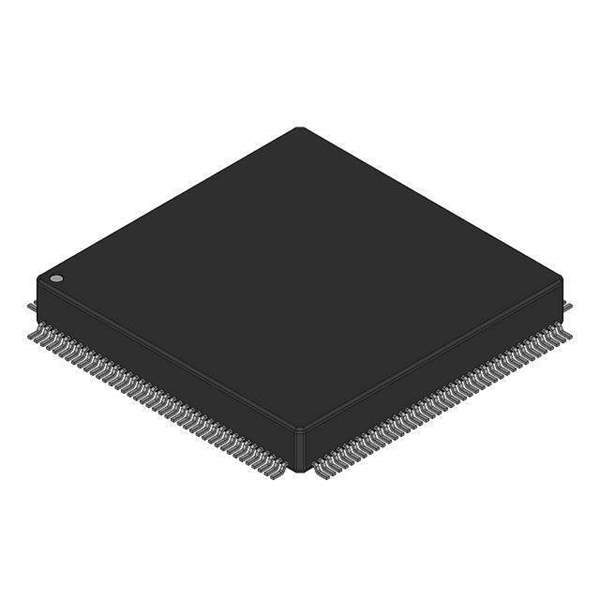

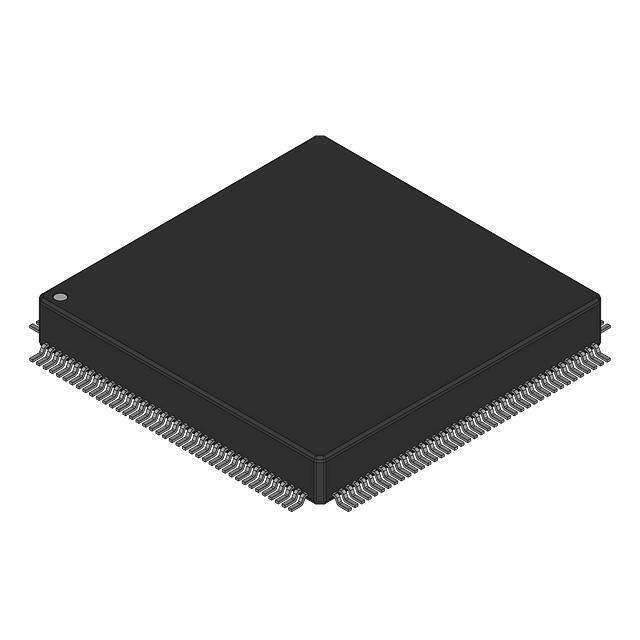

In terms of packaging, the MC56F8167VPYE comes in a 160-pin QFP (Quad Flat Package), which is designed for easy integration into a variety of system designs. Its robust instruction set, coupled with its comprehensive development tools, makes it a flexible and powerful solution for designers looking to create sophisticated and efficient systems.

Overall, the NXP MC56F8167VPYE is a versatile and capable DSC that offers a perfect blend of DSP performance and MCU functionality, making it an excellent choice for demanding embedded applications.
