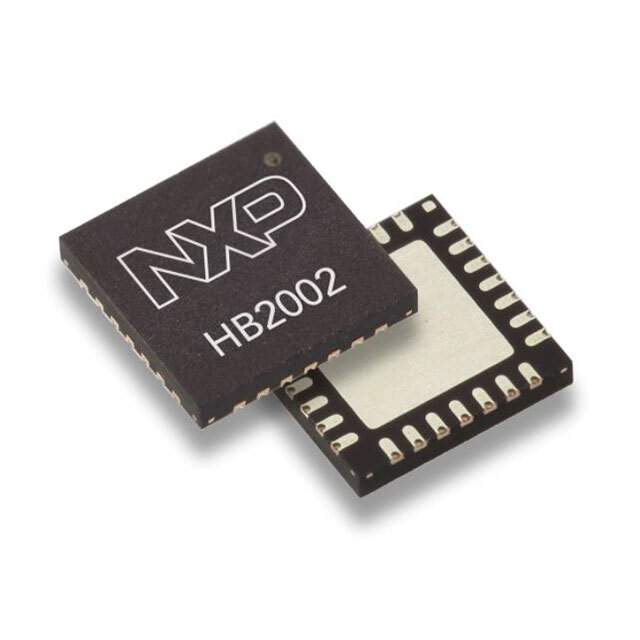

The NXP MC33HB2002ES is a sophisticated H-bridge motor driver designed to cater to the precise control requirements of brushed DC motors. This integrated circuit is a part of NXP's extensive portfolio of motor drivers that are known for their reliability, efficiency, and advanced features.
Key Features
- Voltage Range: The device operates over a wide voltage range, making it suitable for a variety of applications that require different power levels.
- High Current Output: With the capability to handle high current output, the MC33HB2002ES can drive larger motors, ensuring robust performance for demanding applications.
- Thermal Protection: Built-in thermal protection features safeguard the device from overheating, thus enhancing its longevity and reliability.
- Diagnostic Functions: The motor driver includes diagnostic functions that enable the detection of potential issues such as open load, short circuits, and under-voltage, allowing for preemptive maintenance and troubleshooting.
Applications
The versatility of the MC33HB2002ES makes it an ideal choice for a wide range of applications. It is particularly well-suited for automotive environments where precise motor control is necessary. Typical applications include:
- Automotive climate control systems
- Power window mechanisms
- Seat adjustment systems
- Wiper controls
Technical Specifications
Parameter
Specification
Supply Voltage
5.5V to 28V
Output Current (max)
2A
Operating Temperature
-40°C to 150°C
Package
HSOP20
Conclusion
The NXP MC33HB2002ES motor driver is a robust and flexible solution that offers designers the features necessary for precise motor control. With its wide voltage range, high current capabilities, and advanced diagnostic features, this driver is an excellent choice for any application that requires reliable and efficient motor operation.
