The MC15XS3400CHFKR2 is a sophisticated power switch IC designed and manufactured by NXP Semiconductors, a leader in automotive and industrial electronics. This high-side switch is a part of NXP's S3400 family, known for its reliability and efficiency in controlling power to various loads in automotive applications.

Key Features

• Multiple Channels: The device features four independent high-side power channels, making it versatile for controlling different loads.
• High Current Handling: Each channel can handle continuous current up to 15A, with a capability to withstand higher transient currents, making it suitable for demanding applications.
• Low RDS(on): The low on-resistance of the MOSFET channels ensures minimal power loss and improved efficiency.
• Protection Features: It includes various protection mechanisms such as over-current, over-temperature, and short-circuit protection, which enhance the safety and durability of the application.
• Diagnostic Functions: The device offers comprehensive diagnostic features that help in monitoring the status of the loads and the switch itself.
• Wide Voltage Range: The IC operates over a wide voltage range, accommodating the fluctuations commonly found in automotive power systems.

Applications

The MC15XS3400CHFKR2 is primarily used in automotive environments but is also suitable for a range of industrial applications. It is ideal for driving resistive, inductive, and capacitive loads such as:

• Automotive lighting
• Electric heaters
• DC motors
• Solenoids

Quality and Reliability

NXP's commitment to quality ensures that the MC15XS3400CHFKR2 meets the stringent requirements of automotive applications. The device is designed to withstand the harsh conditions of the automotive environment, providing reliable performance over its lifespan.

Packaging and Availability

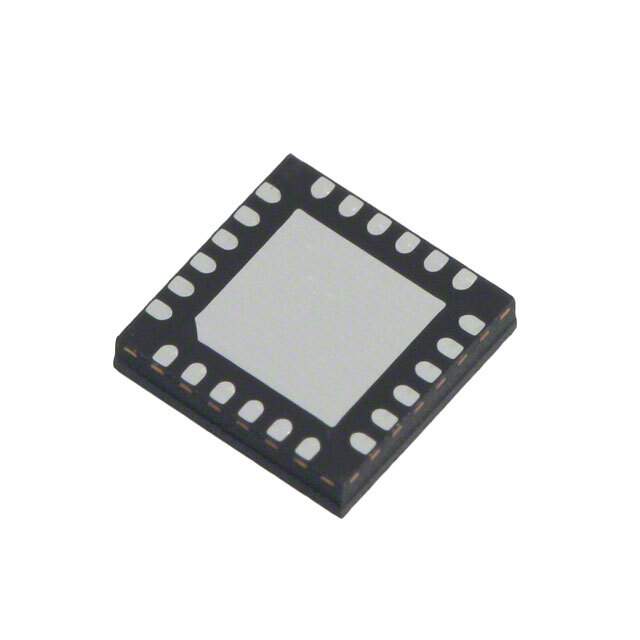

The MC15XS3400CHFKR2 comes in a compact 24-pin HUQFN package, which is suitable for space-constrained applications. Its footprint is optimized for efficient PCB layout and thermal performance. For information on pricing and availability, interested parties should contact NXP or authorized distributors.
