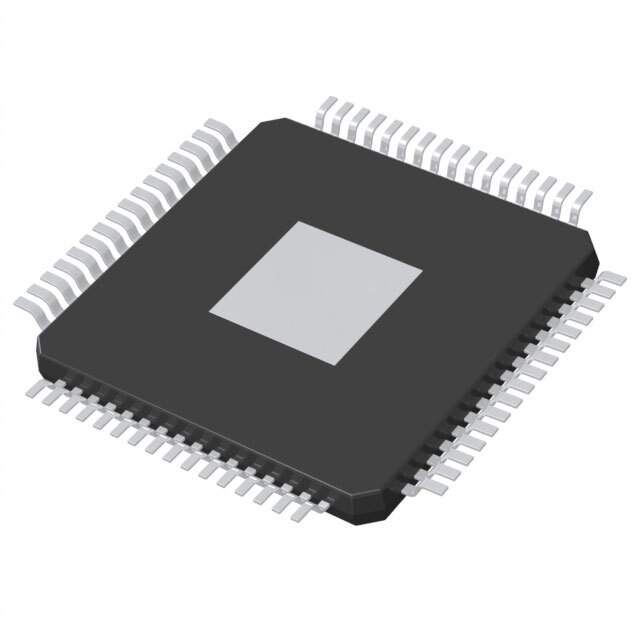

NXP LPC5506JBD64E Microcontroller

The NXP LPC5506JBD64E is a high-performance microcontroller designed for a wide range of applications that require efficient data processing, advanced peripherals, and low-power operation. This microcontroller is part of the LPC5500 series, which is built on the Arm® Cortex®-M33 technology, delivering a perfect blend of power efficiency and performance.

At the heart of the LPC5506JBD64E lies a 32-bit Arm Cortex-M33 processor, which operates at frequencies of up to 150 MHz. The processor is equipped with an integrated Arm TrustZone® technology, ensuring robust security features for applications that demand reliable protection against threats and attacks. This makes the LPC5506JBD64E an ideal choice for industrial control, IoT devices, and secure applications.

The device is packed with 256 KB of on-chip flash memory and 96 KB of SRAM, providing ample space for application code and data storage. The flash memory includes a unique accelerator that enables efficient execution of code with minimal power consumption. The SRAM is partitioned into multiple blocks, allowing for concurrent access and increased system throughput.

The LPC5506JBD64E microcontroller also boasts a rich set of peripherals that enhance its functionality. It includes multiple high-speed USB interfaces with PHY, multiple serial communication interfaces (SCI) such as UARTs, SPI, I2C, and a Digital Signal Processing (DSP) instruction set that enables efficient signal processing tasks.

For connectivity, the device offers flexible options with high-speed and full-speed USB interfaces, including a dedicated physical layer (PHY) for robust data transfer. It also integrates a Secure Digital Input Output (SDIO) interface, which is perfect for connecting to storage devices and other peripherals.

Energy efficiency is a key feature of the LPC5506JBD64E, with multiple power-saving modes that significantly reduce power consumption in idle and active states. The microcontroller also features an on-chip power management unit that helps optimize power usage across various operating conditions.

Overall, the NXP LPC5506JBD64E is a powerful and secure microcontroller that provides a versatile platform for developers to create sophisticated applications in the industrial, IoT, and secure communications sectors.
