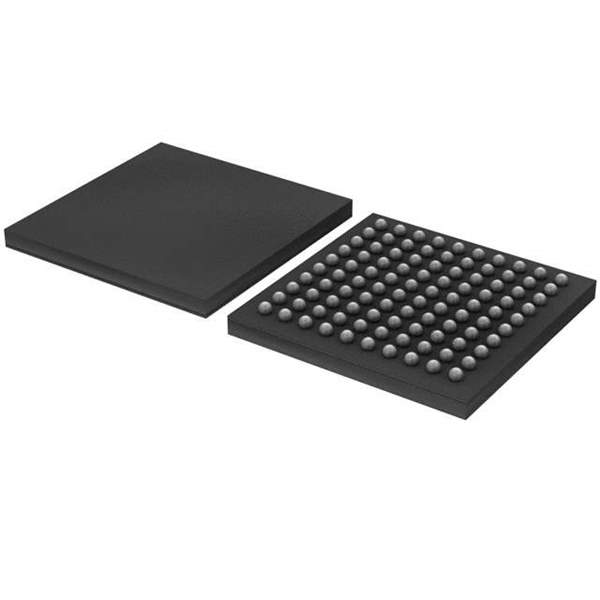

NXP LPC4312JET100E Microcontroller
The NXP LPC4312JET100E is a high-performance microcontroller that belongs to the LPC4300 series, known for its innovative Cortex-M4 and Cortex-M0 dual-core architecture. This particular model is designed to cater to the demanding needs of embedded applications that require efficient signal processing capabilities along with traditional microcontroller functionalities.
At the heart of the LPC4312JET100E lies a 32-bit ARM Cortex-M4 processor capable of operating at frequencies up to 204 MHz. This core includes a Floating-Point Unit (FPU) which significantly enhances the chip's ability to handle complex mathematical computations and digital signal processing tasks. Complementing the Cortex-M4 is a secondary 32-bit Cortex-M0 coprocessor, which is ideal for managing peripheral functions and offloading tasks from the primary core to optimize power consumption and performance.
With its 264 KB of on-chip SRAM and a flexible external memory interface, the LPC4312JET100E is well-equipped for handling sophisticated algorithms and large data buffers. The microcontroller also features a rich set of peripherals, including high-speed USB 2.0, advanced configurable peripherals such as the State Configurable Timer (SCT), Serial General Purpose I/O (SGPIO), and multiple serial communication interfaces like UART, SPI, I2C, and more.
The LPC4312JET100E is housed in a compact 100-pin LQFP package, making it suitable for space-constrained applications. It also boasts an array of system-level features, such as a Memory Protection Unit (MPU), which enhances system reliability by providing memory access control, and a sophisticated power management system that allows for various power-saving modes, ensuring efficient operation in power-sensitive applications.
Developers can take advantage of the comprehensive development tools and software support provided by NXP for the LPC4300 series, which includes IDEs, middleware libraries, and real-time operating system (RTOS) support to accelerate the development process for a wide range of applications, from industrial control systems to advanced audio processing and IoT devices.
Overall, the NXP LPC4312JET100E microcontroller is a versatile and powerful solution that delivers the performance and features necessary to drive next-generation embedded systems.
