The NXP LPC2420FBD208 is a high-performance microcontroller designed for embedded applications requiring a blend of low power consumption and advanced features. This versatile microcontroller is based on a 16/32-bit ARM7TDMI-S CPU with real-time emulation and embedded trace support, making it an ideal choice for industrial control, medical systems, and more.

Key Features

• CPU: 16/32-bit ARM7TDMI-S processor, running at up to 72 MHz.
• Memory: 128 KB on-chip static RAM and 512 KB on-chip flash program memory.
• High-speed GPIO: General Purpose I/O pins can operate at up to 50 MHz.
• Communication Interfaces: Includes multiple serial interfaces such as USB 2.0 Full-speed device, Multiple UARTs, CAN, SPI, I2C, and more.
• Timers: Multiple 32-bit timers, a PWM unit, and a Real-Time Clock with optional battery backup.
• Analog-to-Digital Converter: 10-bit ADC with multiple channels and on-chip temperature sensor.
• Power Management: Offers several power-saving modes for optimal power management.

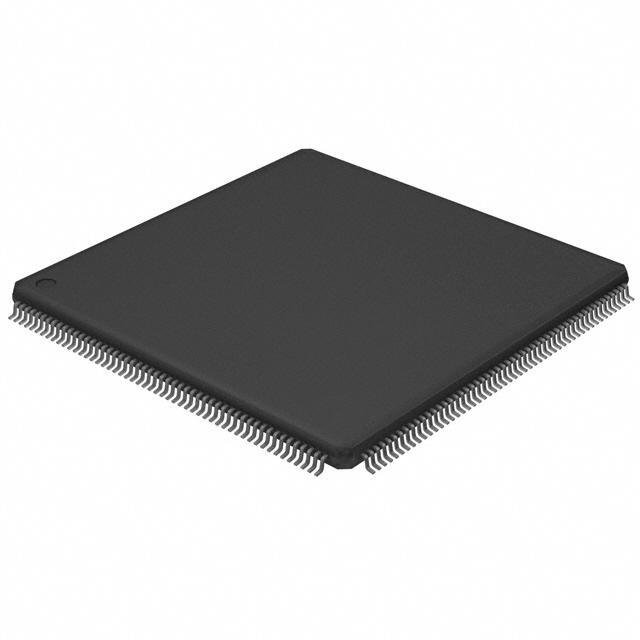

• Package: Available in a 208-pin LQFP package, providing ample I/O for the most demanding applications.
• Debugging and Emulation: JTAG and serial wire debug, as well as performance monitoring, are supported.
• External Memory Interface: Supports a wide range of external memory devices.

Applications

The LPC2420FBD208 is designed to address a wide array of applications, particularly where low power and high throughput are required. It is suitable for industrial control systems, medical instruments, automotive electronics, and communication devices. Its robust serial communication capabilities make it perfect for complex embedded systems that require advanced connectivity.

Support and Resources

NXP offers comprehensive support for the LPC2420FBD208 microcontroller, including development tools, software libraries, and documentation to ensure a smooth development process. Designers can leverage NXP's extensive resources to reduce time-to-market and enhance product performance.
