The NXP LPC1776FBD208 is a high-performance microcontroller that belongs to the LPC1700 series, which is designed for embedded applications requiring a blend of high data processing capabilities and exceptional power efficiency. This microcontroller is based on a 32-bit ARM Cortex-M3 processor core and operates at frequencies of up to 120 MHz.

Key Features

• Core: ARM Cortex-M3 processor, running at frequencies of up to 120 MHz.
• Memory: Features 256 KB of flash memory and 64 KB of RAM, allowing for robust application development.
• GPIO: Offers a wide range of general-purpose input/output pins for versatile connectivity options.
• Communication Interfaces: Includes multiple serial interfaces such as USB 2.0 Full-Speed, CAN, UART, SPI, I²C, and more, providing excellent peripheral connectivity.
• ADC/DAC: Comes with a 12-bit Analog-to-Digital Converter (ADC) and a Digital-to-Analog Converter (DAC) for precise analog signal processing.
• Timers: Equipped with multiple 32-bit timers, a motor control PWM, and a Quadrature Encoder Interface for advanced control applications.

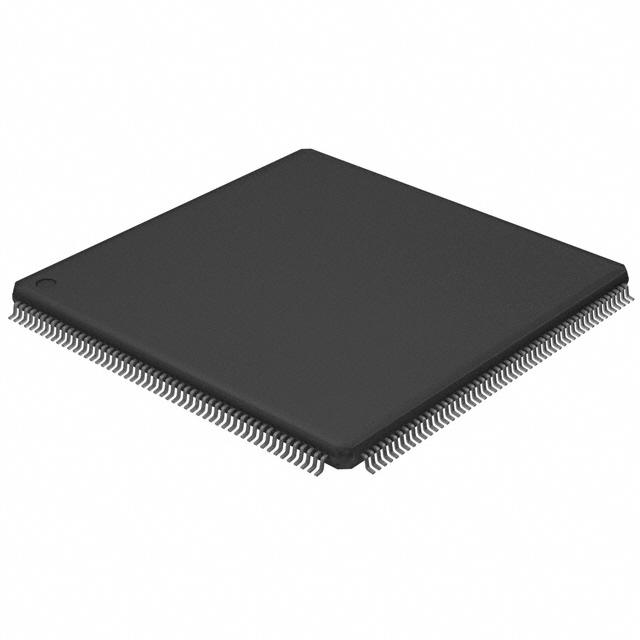

• Package: Available in a 208-pin LQFP package, which is suitable for space-constrained applications.
• Power Efficiency: Features multiple power-saving modes, including deep power-down mode for energy-critical designs.

Applications

The LPC1776FBD208 is ideal for a diverse range of applications, such as industrial control, medical systems, ePOS machines, and networking. Its powerful ARM core, coupled with extensive communication features and a wide operating temperature range, make it suitable for complex and demanding tasks.

Development Support

NXP provides comprehensive development support for the LPC1776FBD208 with its suite of software tools, including the LPCXpresso IDE and a wide range of middleware libraries. Additionally, developers can take advantage of the extensive community support and readily available development boards to accelerate the design and prototyping process.
