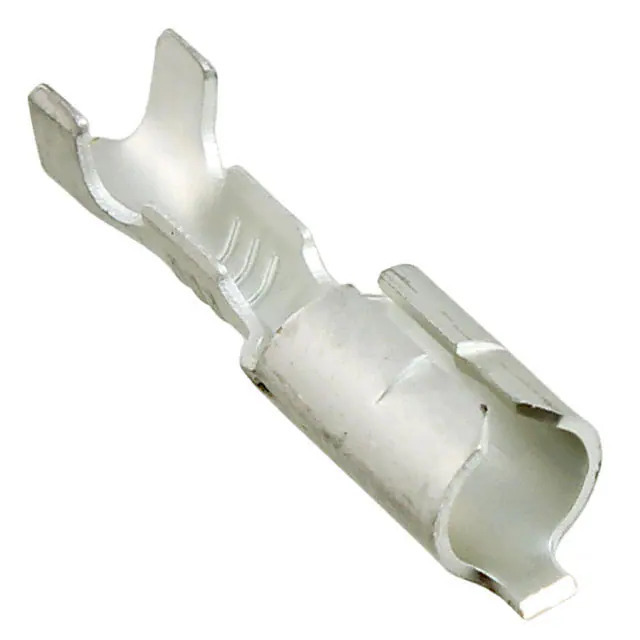

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Barrel, Bullet Connectors
Mfr TE Connectivity AMP Connectors
Series Shur-Plug
Package Tape & Reel (TR)
Product Status Active
Terminal Type Female, Receptacle (Socket)
Diameter - Barrel 0.156" (3.96mm)
Wire Gauge 18-22 AWG
Length - Overall 0.690" (17.53mm)
Length - Barrel 0.250" (6.35mm)
Insulation Non-Insulated
Termination Crimp
Features -
Contact Material Brass
Contact Finish Tin
Color -
Insulation Diameter 0.085" ~ 0.125" (2.16mm ~ 3.18mm)
Material - Insulation -
Base Product Number 42581
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1362947-42581-2
Ultra Librarian 3D Model Ultra Librarian 42581-2 CAD Model

Description

The TE Connectivity AMP Connectors Barrel, Bullet Connectors are ideal for various electrical applications.

  • Termination: Crimp
  • Wire Gauge: 18-22 AWG
  • Contact Finish: Tin
  • Insulation: Non-Insulated
  • Length: 0.690" (17.53mm)
  • Series: Shur-Plug
