Product Overview: LPC1769FBD100,551

The LPC1769FBD100,551 is a high-performance microcontroller product from NXP Semiconductors, renowned for its exceptional processing capabilities and a range of integrated features suited for a variety of applications. This ARM Cortex-M3 based microcontroller is designed to operate at a maximum frequency of 120 MHz, providing a perfect balance between energy efficiency and processing power.

Key Features

• Core: ARM Cortex-M3 processor, running up to 120 MHz.
• Memory: Includes 512 KB of flash memory and 64 KB of RAM, facilitating complex applications and buffering large amounts of data.
• Digital Peripherals: Comes with a variety of digital peripherals including GPIO, timers, UARTs, I2C, SPI, and more, offering extensive interfacing capabilities.
• Analog Modules: Features an 8-channel 12-bit ADC and a 10-bit DAC, enabling the microcontroller to interact with analog signals in both directions.
• PWM Outputs: Supports multiple Pulse Width Modulation outputs for controlling motors, dimming LEDs, or other PWM applications.
• Connectivity: Provides Ethernet, USB 2.0 Device/Host/OTG, CAN, and other communication interfaces for robust connectivity options.

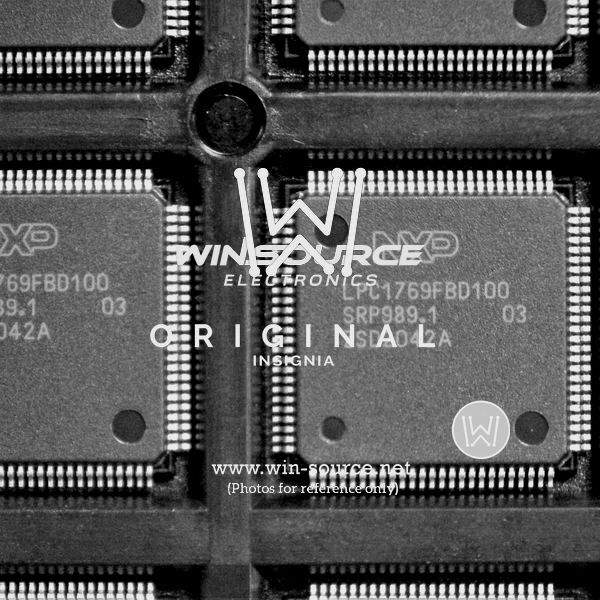

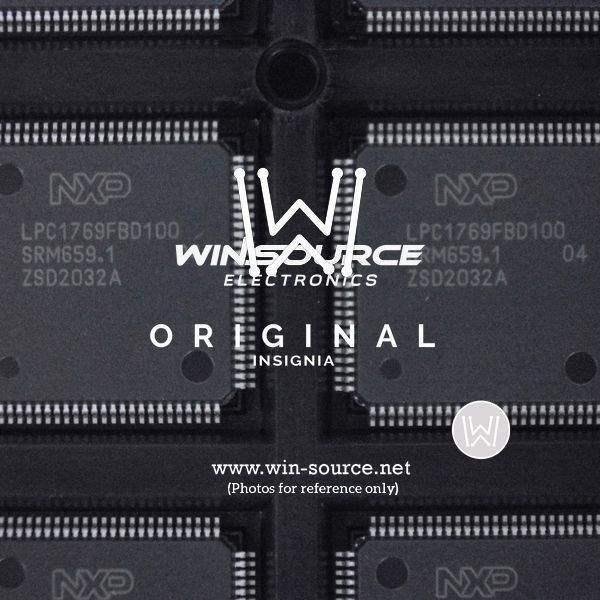

• Package: Housed in an LQFP-100 package, ensuring a compact footprint while allowing for efficient thermal management.
• Power Management: Includes power profiles that support various power modes, such as sleep and deep power-down modes, to optimize power consumption.

Applications

The LPC1769FBD100,551 is ideal for a wide range of applications, including but not limited to industrial control, motor control, medical systems, e-vehicle systems, and embedded audio. Its robust feature set also makes it suitable for IoT devices requiring connectivity, processing power, and low power operation.

Tools and Support

Developers can take advantage of NXP's extensive support and development tools for the LPC1769FBD100,551, including software libraries, development boards, and the LPCXpresso IDE for streamlined development. Additionally, a supportive community and comprehensive documentation are available to help accelerate design cycles and bring products to market more efficiently.
