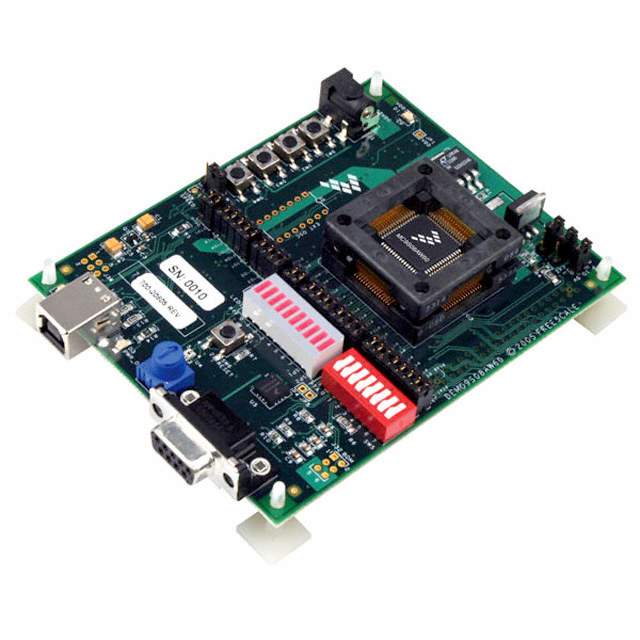

The DEMO9S08AW60E is a versatile and powerful demonstration board from NXP, designed to showcase the capabilities of the MC9S08AW60 microcontroller. This microcontroller is part of the S08 family, which is renowned for its robust architecture, enhanced performance, and low power consumption. The DEMO9S08AW60E board provides a comprehensive platform for developers to create, evaluate, and refine applications that require a high-performance 8-bit microcontroller.

Key Features

• MC9S08AW60 Microcontroller: At the heart of the DEMO9S08AW60E is the MC9S08AW60, featuring a HCS08 central processing unit with a maximum bus frequency of 40 MHz, 60 KB of flash memory, and 4 KB of RAM.
• Onboard Debugging: The board includes an integrated P&E USB-BDM multilink interface for debugging, which eliminates the need for additional hardware to program or debug the microcontroller.
• Connectivity: Equipped with a range of connectivity options, including a SCI (Serial Communication Interface), SPI (Serial Peripheral Interface), and I2C interface, the board ensures easy integration with peripheral devices.
• User Interface: The DEMO9S08AW60E comes with user-friendly interfaces such as an 8x2 character LCD, LED indicators, and push buttons to interact with the microcontroller for testing and demonstrations.
• Power Supply Options: Flexibility is provided via multiple power supply options, including USB, an external power supply, or a battery, making it suitable for various development scenarios.

Applications

The DEMO9S08AW60E is ideal for a wide array of applications, particularly in the fields of industrial control, automotive systems, home appliances, and consumer electronics. Its robust feature set and expandability make it an excellent choice for prototyping and developing sophisticated embedded systems.

Development Support

NXP offers comprehensive development support for the DEMO9S08AW60E with sample code, technical documentation, and software tools. The board is supported by the CodeWarrior Development Studio, which provides an integrated development environment (IDE) with a full-featured code editor, compiler, and debugger to streamline the development process.
