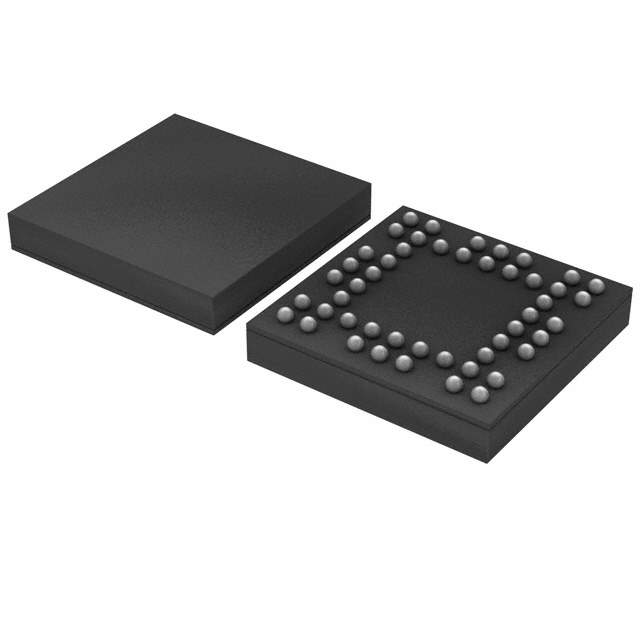

The CBTL06DP213EE is a high-performance signal switch integrated circuit designed and manufactured by NXP Semiconductors. This advanced switch is part of NXP's broad portfolio of interface products, which are known for their reliability, speed, and efficiency. The CBTL06DP213EE is specifically engineered to facilitate the routing of high-speed differential signals.

Key Features

• High-Speed Performance: This switch is capable of handling data rates up to 10 Gbps, making it ideal for applications that require fast and efficient data transfer.
• Low Insertion Loss: The CBTL06DP213EE maintains signal integrity with a low insertion loss, which is critical for maintaining the quality of high-speed signals.
• Configurable Channels: It features configurable channels that can be used as 2 differential pairs or 4 single-ended lanes, providing flexibility for different design requirements.
• Power Efficiency: Designed with power efficiency in mind, this switch consumes minimal power, thereby reducing the overall power consumption of the system it's integrated into.
• ESD Protection: The device includes integrated Electrostatic Discharge (ESD) protection circuits to safeguard against sudden voltage spikes, ensuring longevity and reliability.

Applications

The CBTL06DP213EE is well-suited for a variety of applications that demand high-speed data transfer and signal routing. Typical applications include:

• High-speed signal multiplexing and demultiplexing in computing and storage platforms.
• Interface bridging in consumer electronics such as laptops, desktops, and docking stations.
• Signal management in telecommunications equipment and networking devices.

Technical Specifications

The CBTL06DP213EE operates within a temperature range of -40°C to +85°C, accommodating a wide range of environmental conditions. It is available in a compact HVQFN24 package, which is ideal for space-constrained applications. The switch also supports hot plug-in detection, which is essential for user-friendly interfaces that require hot-swapping capabilities.

For designers and engineers looking for a robust and versatile signal switching solution, the CBTL06DP213EE by NXP is an excellent choice. Its combination of high-speed data handling, low power consumption, and flexibility make it a valuable component in modern electronic systems.
