The BT138B-600E is a high-performance triac manufactured by NXP Semiconductors, designed to control AC loads in a variety of applications. This robust semiconductor device is capable of switching and controlling high-power AC loads with excellent power handling capabilities and surge current protection.

Key Features

• High Blocking Voltage: The BT138B-600E is rated for a maximum repetitive peak off-state voltage (VDRM) of 600V, making it suitable for use in circuits with high peak voltages.
• High On-State Current: It can handle a maximum RMS on-state current (IT(RMS)) of 12A, allowing it to control moderately high power devices.
• Gate Trigger Current: The device has a specified gate trigger current (IGT) of less than 25mA, which ensures that it can be easily triggered with low power gate drive circuits.
• Surge Current Capability: With a non-repetitive surge peak on-state current (ITSM) of 120A, the BT138B-600E can handle high surge currents, making it reliable in applications where short-term overload is possible.
• Planar Passivated for Voltage Ruggedness and Reliability: The triac is passivated with a planar technique for reliable voltage ruggedness and performance.
• Triggering in All Four Quadrants: It is capable of being triggered in all four quadrants, making it versatile for phase control operations.
• Sensitive Gate: The sensitive gate allows for direct interfacing with microcontrollers and other logic-level devices.

Applications

The BT138B-600E is ideal for a range of applications that require efficient control of AC power. It is commonly used in:

• Motor control circuits
• Lighting dimmers
• Heating regulators
• Domestic and industrial appliances

Package and Quality

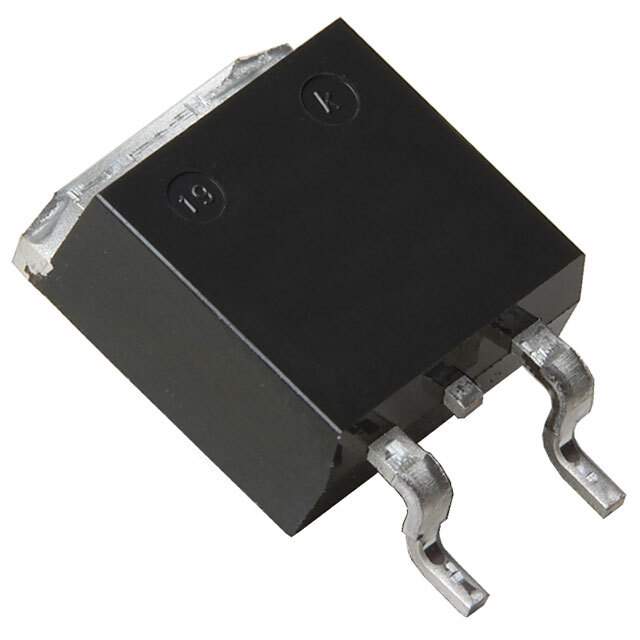

This triac comes in a D2PAK surface-mount package, which is suitable for compact PCB designs and automated assembly processes. The device is compliant with RoHS and Halogen-Free requirements, ensuring environmental standards are met.

Conclusion

The BT138B-600E from NXP is a reliable and versatile choice for designers seeking a high-performance triac capable of managing AC power in a wide array of electronic applications. Its robust design and comprehensive feature set ensure that it can meet the demands of complex power control systems.
