Products specifications

Categories Integrated Circuits (ICs)
Features Video Amp 1 CATV SOT115J
Manufacturer NXP
Package Bulk
Part Status Obsolete
Mounting Chassis Mount
Package SOT-115J
Case / Package SOT115J
Family Name BGD81
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.33.0001
Other Part Number 934055919112, 568-5609, BGD814, 954-BGD814112, BGD814112, BGD814,112-ND, BGD814-ND
Quantity per package 25
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 864211-BGD814,112
Ultra Librarian 3D Model Ultra Librarian BGD814,112 CAD Model

Description

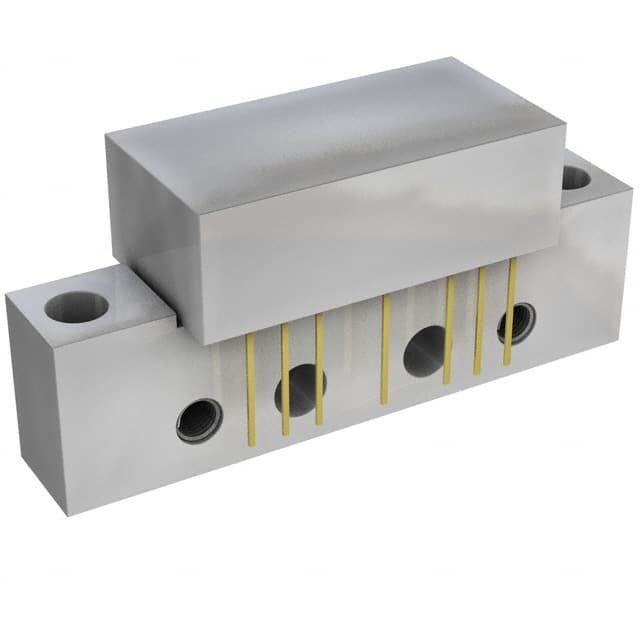

The BGD814,112, from the reputable semiconductor manufacturer NXP Semiconductors, is a high-performance silicon NPN bipolar Monolithic Microwave Integrated Circuit (MMIC) designed for a range of applications. This amplifier is particularly suited for CATV systems and is optimized to provide excellent linearity and gain across a broad frequency range.

Key Features

  • Frequency Range: The BGD814,112 operates over a wide frequency range, making it versatile for various RF applications, including cable television (CATV) systems.
  • High Output Capability: With its high output power, this MMIC can drive signals with minimal distortion, ensuring clear transmission and reception of data.
  • Excellent Linearity: The device is engineered to maintain signal fidelity, providing consistent performance and minimizing signal degradation.
  • Low Noise Figure: Its low noise figure ensures that the signal-to-noise ratio is optimized, resulting in a cleaner, higher quality output.
  • Robust Design: The BGD814,112 is built to withstand the demands of CATV systems, ensuring reliability and longevity.

Applications

This MMIC is ideally suited for use in a variety of RF signal amplification roles, with a primary focus on cable television applications. Its robust design and high linearity make it an excellent choice for:

  • CATV distribution networks
  • Hybrid fiber-coaxial (HFC) infrastructures
  • Amplifiers in broadband communication systems

Technical Specifications

The BGD814,112 boasts an impressive set of technical specifications, including:

  • Operating frequency range: 40 MHz to 860 MHz
  • Gain: 18 dB typical at 860 MHz
  • Noise figure: 3 dB typical at 860 MHz
  • Supply voltage: 24 V (DC)
  • Package: SOT115J

With its combination of performance and durability, the BGD814,112 from NXP Semiconductors is an excellent choice for enhancing RF signal amplification in high-demand environments.
