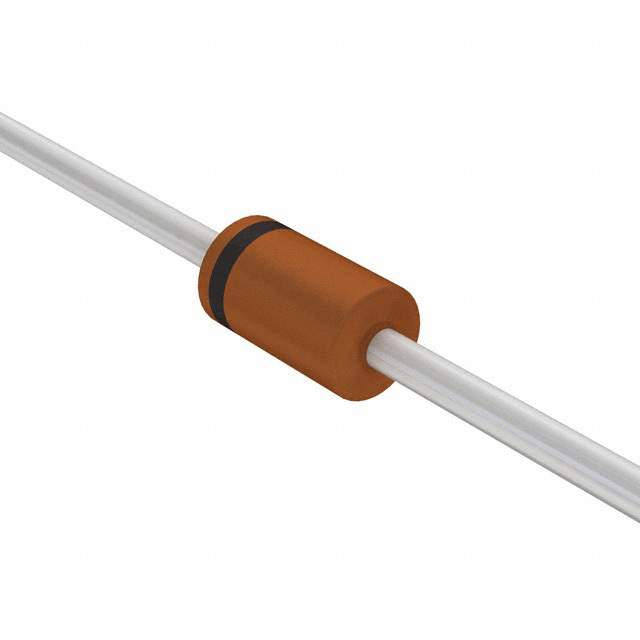

The NXP BAT86AMO represents a high-performance Schottky barrier diode designed for applications requiring fast switching and low power loss. This diode is a crucial component in modern electronics, offering efficient operation and reliability. Its compact SOD27 (DO-35) package makes it suitable for high-density circuit designs.

Key Features

• Low Forward Voltage Drop: The BAT86AMO diode features a low forward voltage drop, which enhances its efficiency in conducting current and reduces energy wastage, making it ideal for portable devices where power conservation is critical.
• High Switching Speed: With its fast switching capability, this diode is well-suited for high-frequency applications, ensuring minimal signal delay and improved performance in circuits such as switch-mode power supplies and high-speed logic systems.
• Reverse Leakage Current: The device exhibits a low reverse leakage current that contributes to a reduction in power loss and enhances the overall efficiency of the application it is used in.
• Guard Ring Protection: The inclusion of a guard ring offers enhanced ruggedness and long-term reliability, providing protection against excessive voltage spikes and ensuring stable operation under harsh conditions.

Applications

The NXP BAT86AMO is versatile and can be used in a variety of applications, including:

• Power Management Circuits
• DC-DC Converters
• Reverse Polarity Protection
• Low-Voltage Rectification
• High-Frequency Inverters
• Switching Power Supplies
• Automotive End Products

Technical Specifications

In summary, the NXP BAT86AMO Schottky barrier diode is a highly efficient, fast-switching diode that is suitable for a wide range of applications. Its low power loss, high-speed operation, and reliability make it an excellent choice for designers looking to optimize their electronic circuits.
