Product Overview: NXP 74LVC240ABQ

The NXP 74LVC240ABQ is a high-performance, low-voltage Octal Inverting Buffer/Line Driver with 3-state outputs. It is part of the LVC (Low-Voltage CMOS) family, which is renowned for its low power consumption and high speed. This integrated circuit is designed to be used in applications where driving bus lines of a memory address bus, data bus, or control bus is required.

Key Features

• High-Speed Interface: The 74LVC240ABQ operates at a voltage range of 1.2V to 3.6V, which allows for interfacing with 3.3V logic levels while maintaining high-speed performance.
• Octal Configuration: It consists of eight inverting buffers with 3-state outputs, which provide the flexibility to be used in various configurations and applications.
• 3-State Outputs: The 3-state outputs ensure that multiple outputs can be connected to a bus without conflict, as the output can be set to a high-impedance state.
• Power-Down Protection: All inputs can be connected to VCC or GND with low current consumption, providing protection when the device is powered down.
• ESD Protection: The device includes robust ESD protection, which exceeds JESD 22, ensuring the reliability and longevity of the product in real-world applications.

Applications

The NXP 74LVC240ABQ is ideal for various applications, including:

• Memory address driving
• Data bus driving
• Control bus driving
• Buffering for a wide range of applications
• Interfacing in mixed 3.3V/5V systems

Product Specifications

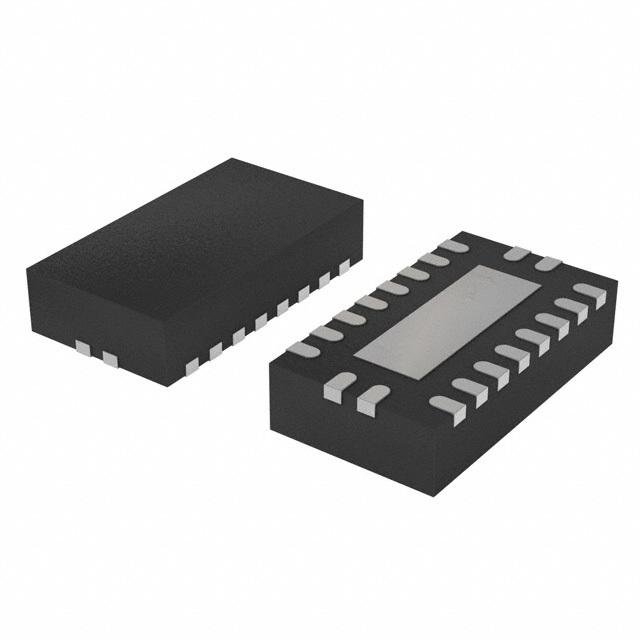

This device is packaged in a DHVQFN20 package, which is a very thin quad flat package with no leads and excellent thermal performance. It is specified for operation from -40°C to +125°C, making it suitable for industrial temperature ranges. The 74LVC240ABQ also supports balanced propagation delays and transition times, which is critical for maintaining signal integrity in high-speed applications.

With its combination of high-speed operation, low power consumption, and robust protection features, the NXP 74LVC240ABQ is a reliable and efficient solution for modern electronic systems requiring high-quality buffer and line driver capabilities.
