NXP 74LVC1G02GF,132 Logic Gate - NOR Gate IC

The 74LVC1G02GF,132 is a high-performance, single 2-input NOR gate IC designed and manufactured by NXP Semiconductors. This compact and efficient integrated circuit is part of the 74LVC family, which is known for its low-voltage operation and compatibility with 3.3V and 5V systems. With its small footprint and low power consumption, this NOR gate is an ideal choice for a wide range of applications in modern electronics.

The device is fabricated with advanced silicon-gate CMOS technology which ensures high-speed operation while maintaining the low static power dissipation of CMOS circuitry. This makes the 74LVC1G02GF,132 suitable for battery-powered and portable devices, as well as for general-purpose logic applications that require energy efficiency.

Key Features:

• Operating Voltage: The IC operates on a wide range of supply voltages from 1.65V to 5.5V, making it versatile for interfacing with both TTL and CMOS logic levels without the need for additional level shifting.
• High-Speed: Despite its low power consumption, the 74LVC1G02GF,132 offers a high-speed performance that is crucial for fast switching applications.
• Low Power Dissipation: It has an extremely low static power consumption, with a typical ICC of only 1 µA, significantly reducing the overall power requirements of the system.
• Input and Output Compatibility: Inputs are tolerant to 5.5V, allowing direct interfacing with higher voltage logic levels without any damage. Output drive capability is also robust, capable of driving 50Ω transmission lines.

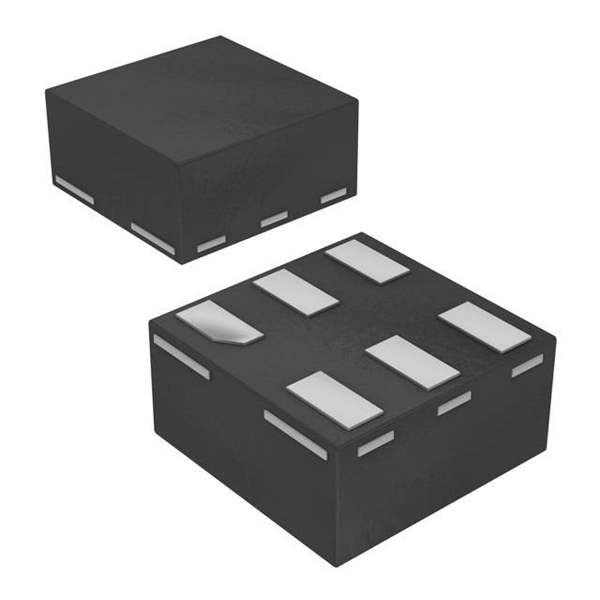

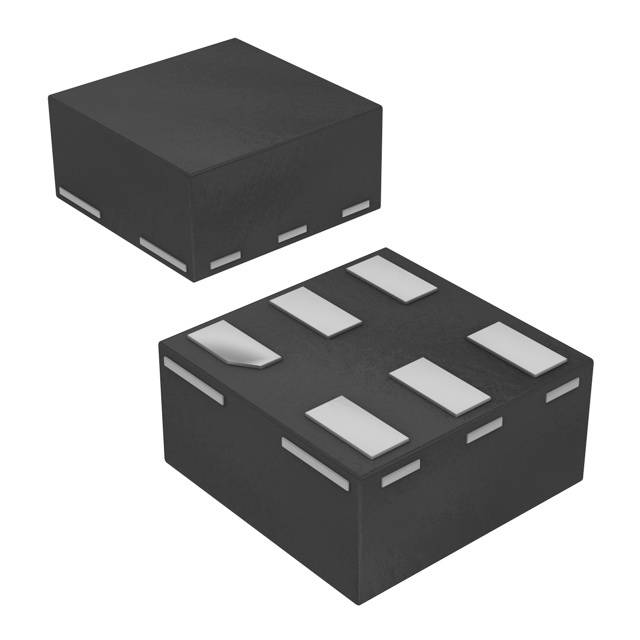

• Package: The IC is available in a leadless ultra-thin DFN package with a body size of 1.0mm x 1.0mm, making it suitable for space-constrained applications.
• ESD Protection: It features input and output protection against electrostatic discharge, ensuring reliability and longevity in harsh environments.

Applications:

• General purpose logic
• Portable and battery-powered electronics
• Computing devices
• Telecommunications
• Embedded systems

The 74LVC1G02GF,132 NOR gate from NXP is a testament to the company's commitment to providing high-quality, reliable components for the electronics industry. Its combination of low power, high speed, and small size makes it a versatile choice for designers looking to optimize their digital logic systems.
