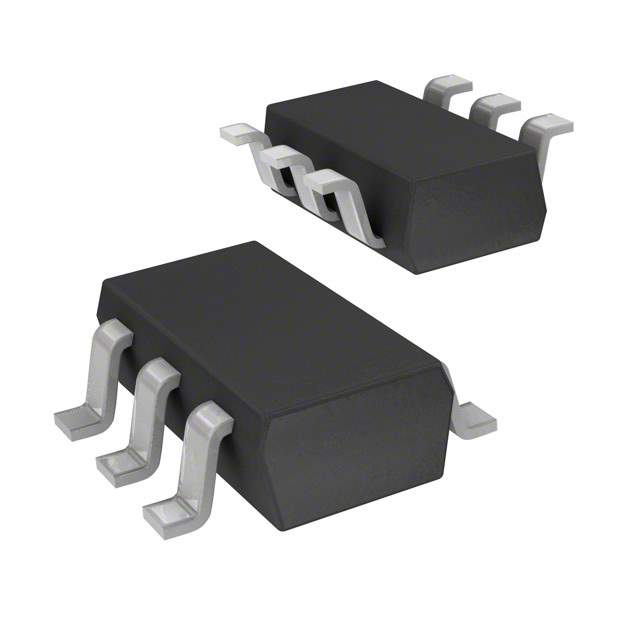

CDSOT236-DSL0324 Real Image
Same model may have multiple batches, images only for reference.

CDSOT236-DSL0324

Part No CDSOT236-DSL0324
Manufacturer Bourns Inc.
Catalog TVS - Diodes
Description TVS DIODE 24VWM 40VC SOT23-6 / 40V Clamp 15A (8/20µs) Ipp Tvs Diode Surface Mount SOT-23-6
Datasheet
CDSOT236-DSL0324 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Transient Voltage Suppressors (TVS)>TVS Diodes
Mfr Bourns Inc.
Series -
Package Tape & Reel
Product Status Obsolete
Type Steering (Rail to Rail)
Unidirectional Channels 2
Voltage - Reverse Standoff (Typ) 24V
Voltage - Breakdown (Min) 26V
Voltage - Clamping (Max) @ Ipp 40V
Current - Peak Pulse (10/1000µs) 15A (8/20µs)
Power - Peak Pulse 500W
Power Line Protection Yes
Applications General Purpose
Capacitance @ Frequency -
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case SOT-23-6
Supplier Device Package SOT-23-6
Base Product Number CDSOT236
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Standard Package 3,000 pcs
Win Source Part Number 1381955-CDSOT236-DSL0324
Ultra Librarian 3D Model Ultra Librarian CDSOT236-DSL0324 CAD Model

Description

The CDSOT236-DSL0324 is a TVS Diode designed for circuit protection against transient voltage surges. It features a steering (rail to rail) type and is suitable for general-purpose applications.

  • Reverse Standoff Voltage: 24V
  • Breakdown Voltage: 26V
  • Clamping Voltage: 40V @ peak pulse current
  • Power Rating: 500W
  • Mounting Type: Surface Mount
  • Manufacturer: Bourns Inc.
  • Status: Obsolete
  • ECCN: EAR99
  • REACH: Unaffected
