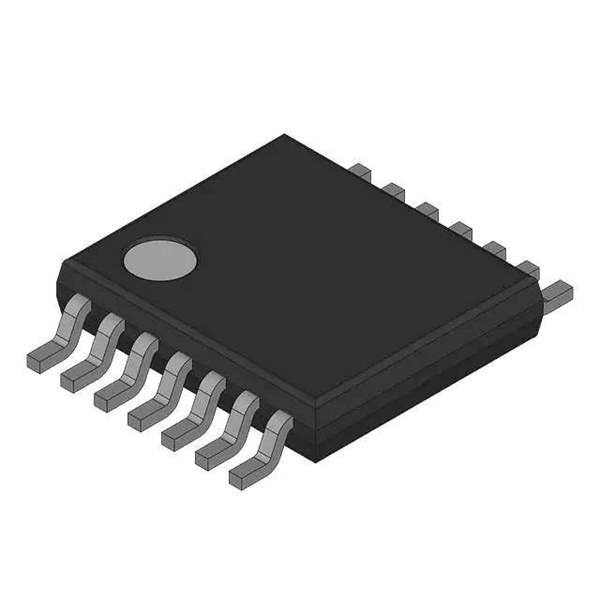

Product Overview: 74LVC08APW/DG118 by NXP

The 74LVC08APW/DG118 is a high-performance, low-voltage Quad 2-input AND gate integrated circuit (IC) from the renowned semiconductor manufacturer NXP. This logic gate IC is part of the LVC family, which is well-known for its low-voltage operation and high-speed interface technology. The product is designed to operate with a power supply voltage ranging from 1.2V to 3.6V, making it particularly suitable for battery-operated and low-power applications.

Encased in a TSSOP14 (Thin Shrink Small Outline Package with 14 pins) package, the 74LVC08APW/DG118 provides a compact solution for implementing logical AND functions in various digital circuits. The device's inputs are 5V tolerant, allowing it to be used in mixed-voltage environments and interfaced with higher voltage logic levels without risking damage to the IC.

One of the key features of this product is its high noise immunity, which is achieved through a balanced propagation delay. This ensures reliable operation even in noisy electrical environments, making it ideal for use in communication devices, computing equipment, and other sophisticated electronic systems. Additionally, the 74LVC08APW/DG118 boasts a low power consumption, which is a critical characteristic for energy-sensitive designs.

The IC is also characterized by its high-impedance OFF-state outputs, which prevent back-driving of outputs when the device is powered down. This is particularly useful in preventing potential damage during power-up or power-down sequences. Furthermore, the 74LVC08APW/DG118 supports bus hold functionality on its inputs, eliminating the need for external pull-up or pull-down resistors and simplifying PCB design.

As with all NXP products, the 74LVC08APW/DG118 is manufactured to high standards, ensuring reliability and performance consistency. It is a versatile component that can be utilized in a wide array of applications, ranging from simple logic gates to more complex digital systems requiring multiple logic operations.

In summary, the 74LVC08APW/DG118 from NXP is a robust, low-voltage Quad 2-input AND gate that offers high noise immunity, low power consumption, and 5V tolerant inputs, all encapsulated in a space-saving TSSOP14 package. It is an excellent choice for designers seeking to integrate logical AND functions into their low-power, high-performance digital systems.
