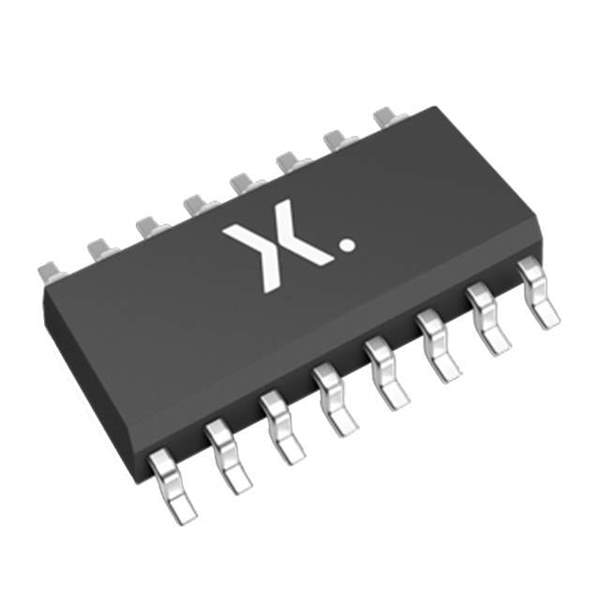

NXP 74HCT4094DT Product Overview

The NXP 74HCT4094DT is a high-performance, integrated circuit designed for a variety of digital applications. This 8-stage shift-and-store bus register is part of the 74HCT family, which is well-known for its compatibility with TTL (Transistor-Transistor Logic) levels while operating at the higher speeds of CMOS technology. The device features a robust design that ensures reliable operation in a wide range of electronic devices.

Key Features

• Logic Type: The 74HCT4094DT is an 8-bit serial-in/serial or parallel-out shift register with a storage register and 3-state outputs.
• Operating Voltage: It operates within a voltage range of 4.5V to 5.5V, making it suitable for interfacing with 5V logic levels.
• High-Speed: The device boasts high-speed throughput, which is a hallmark of the CMOS technology, enabling quick data processing and transfer.
• Output Capability: It features 3-state outputs, which can be used in bus-oriented applications, providing the flexibility to share a common data path.
• Package Type: The 74HCT4094DT is available in a surface-mount package, specifically in a SOIC-16 (Small Outline Integrated Circuit) form factor, which is ideal for compact PCB layouts.

Applications

The versatility of the 74HCT4094DT makes it suitable for a wide array of applications. These include:

• Serial-to-parallel data conversion
• Remote control holding registers
• Multi-segment LED displays
• Interface circuits
• Sequential logic circuits

Quality and Reliability

NXP Semiconductors is known for its commitment to quality, and the 74HCT4094DT is no exception. It is manufactured to the highest standards, ensuring that each device meets NXP's rigorous specifications for performance and reliability. This makes the 74HCT4094DT a trusted choice for designers and engineers looking for a reliable shift register solution.

With its combination of high-speed operation, flexible voltage range, and versatile application potential, the NXP 74HCT4094DT is an excellent choice for projects requiring a dependable shift-and-store bus register.
