Product Overview: NXP 74HCT1G14GW-G

The NXP 74HCT1G14GW-G is a high-speed Si-gate CMOS device that belongs to a family of logic gates designed for various electronic applications. This particular device is a single inverting Schmitt trigger buffer that provides the functionality necessary for performing signal conditioning tasks with enhanced noise immunity and stable output transitions.

Key Features

• Logic Type: Schmitt Trigger Inverter - The 74HCT1G14GW-G possesses a Schmitt trigger input that enables it to smooth out noise on input signals, providing a cleaner, more stable output.
• Supply Voltage Range: 4.5V to 5.5V - This device operates within a supply voltage range that is suitable for interfacing with TTL levels, thus allowing for easy integration into 5V logic systems.
• High Noise Immunity: The inherent design of the Schmitt trigger input provides a high degree of noise immunity, which is crucial for applications in electrically noisy environments.
• Low Power Consumption: As part of the CMOS family, the 74HCT1G14GW-G boasts a low power consumption, making it ideal for battery-operated and power-sensitive applications.
• Output Drive Capability: Capable of driving up to 10 LSTTL loads, the device provides sufficient current to handle multiple connections without the need for additional buffering.

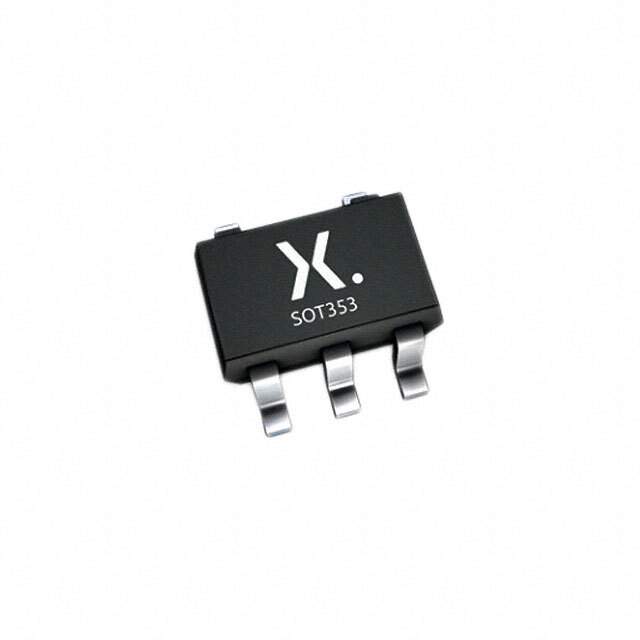

• Package: The device comes in a compact SOT-353 package, which is suitable for space-constrained applications.
• Temperature Range: The operating temperature range is from -40°C to +125°C, ensuring reliable performance across a wide range of environmental conditions.
• Compliance: The 74HCT1G14GW-G is compliant with JEDEC standard no. 7A, making it compatible with industry standards for electronic components.

Applications

The 74HCT1G14GW-G can be used in a variety of applications, including but not limited to:

• Wave shaping and noise filtering circuits
• Signal processing
• Glitch removal on digital lines
• Oscillator circuits
• Logic level translation for interfacing different voltage domains

With its robust design and versatile features, the NXP 74HCT1G14GW-G is an excellent choice for designers looking for a reliable inverting Schmitt trigger buffer that can deliver consistent performance in a broad range of electronic applications.
