The 74CBTLV3253PW-Q100118 is a high-performance, low-voltage dual 1-of-4 multiplexer/demultiplexer manufactured by NXP Semiconductors. This versatile component is designed to be used in applications requiring routing of digital signals up to 3.6V. Its bidirectional data flow with individual direction controls makes it ideal for multiplexing and demultiplexing in communication systems, networking, and data management tasks.

Key Features

• Voltage Range: Operates at a supply voltage ranging from 2.3V to 3.6V, making it suitable for low-voltage applications.
• High-Speed Operation: Features a 250 MHz bandwidth, ensuring fast signal processing for high-speed data transfer.
• Low Power Consumption: The device has a low quiescent current, which minimizes power usage and enhances system efficiency.
• ESD Protection: Equipped with robust electrostatic discharge (ESD) protection, thereby ensuring reliability and longevity in harsh environments.
• Quality and Reliability: The Q100118 part of the product number indicates that this device meets stringent automotive industry standards, reflecting its high quality and reliability.

Applications

• Automotive infotainment systems
• Signal routing in telecommunication networks
• High-speed data acquisition systems
• Server and computing infrastructure
• Peripheral switching for microprocessor or microcontroller-based systems

Package and Availability

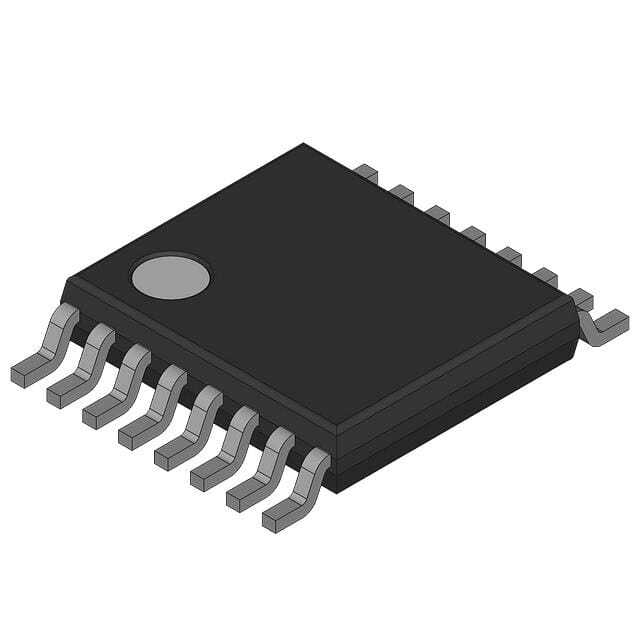

The 74CBTLV3253PW-Q100118 is offered in a TSSOP16 (Thin Shrink Small Outline Package) which provides a compact footprint while allowing for good thermal performance. The package is also suitable for surface mount technology (SMT), facilitating integration into automated manufacturing processes.

For designers and engineers seeking a reliable solution for their multiplexing and demultiplexing needs, the 74CBTLV3253PW-Q100118 by NXP Semiconductors stands out with its combination of performance, power efficiency, and robustness, backed by the assurance of automotive-grade quality.
