Product Overview: 74AUP1G38GF,132 by NXP Semiconductors

The 74AUP1G38GF,132 is a high-performance, low-power single 2-input NAND gate with open-drain output belonging to NXP Semiconductors' advanced ultra-low power (AUP) family. This component is designed for optimal efficiency in mobile and portable applications, where power conservation is critical. Its open-drain output allows for wired-AND or wired-OR configurations, providing additional flexibility in logic design.

Key Features

• Low Power Consumption: The 74AUP1G38GF,132 operates with a very low static and dynamic power consumption, making it ideal for battery-powered devices.
• Wide Voltage Range: It supports a wide supply voltage range from 0.8V to 3.6V, accommodating various power requirements and ensuring compatibility with both low-voltage and standard logic level circuits.
• High-Speed Operation: Despite its low power design, the device does not compromise on speed, offering high-speed performance with a t_pd of typically 3.0ns at V_CC = 3.3V.
• Open-Drain Output: The open-drain output enables direct interfacing with other open-drain or push-pull outputs and the possibility of connecting outputs together for wired logic functions.
• ESD Protection: High Electrostatic Discharge (ESD) protection levels are provided, ensuring robust performance in environments where static discharge can occur.

Applications

The 74AUP1G38GF,132 is versatile and can be used in a variety of applications including:

• Smartphones and tablets
• Portable media players
• Wearable technology
• Internet of Things (IoT) devices
• Low-power microcontroller systems

Package and Quality

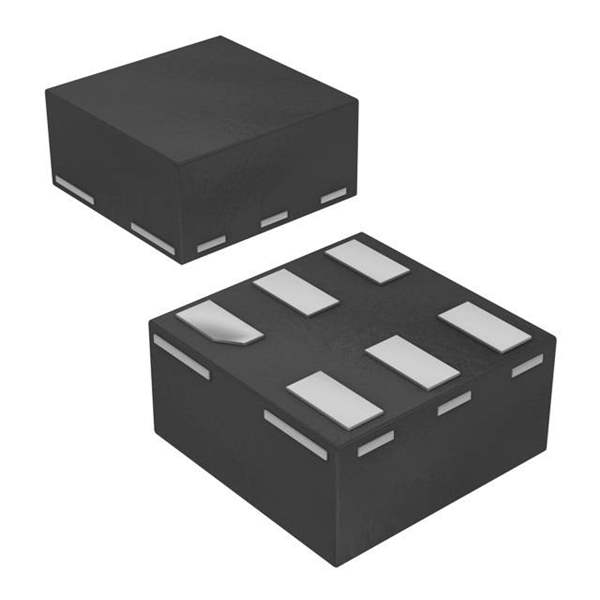

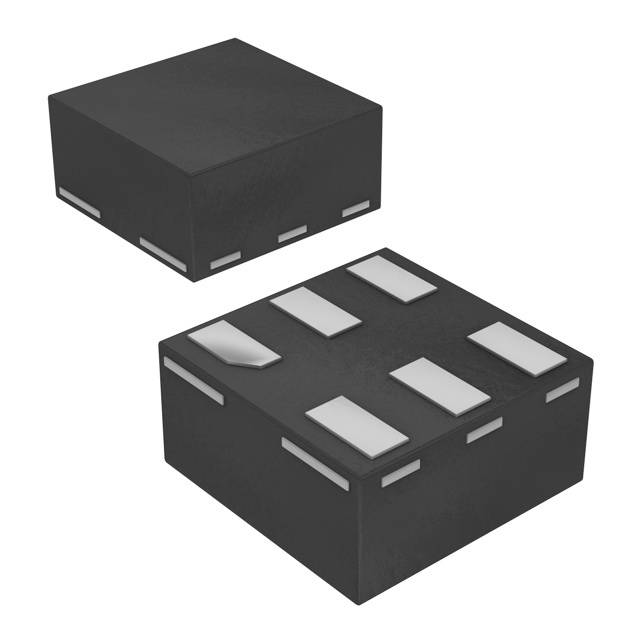

This NAND gate is offered in a leadless ultra-small XSON6 package, which is not only space-saving but also suitable for high-density mounting on PCBs. NXP is known for its commitment to quality, and the 74AUP1G38GF,132 is no exception. It is manufactured under strict quality control standards, ensuring reliable performance and longevity in all supported applications.

With its combination of low power, high-speed operation, and flexible voltage compatibility, the 74AUP1G38GF,132 from NXP Semiconductors is an excellent choice for designers looking to optimize their digital logic circuits without sacrificing performance.
